Steel Hatch Cover
- Application
Used for small size hatch cover of various ships.
Meets the Standards of CB/T 3728-1995 & ISO 5778-1994.
- Type
Type | Name | Structure | Normal size LxB |
Hinge position |
A | Single side opening, weathertight |
butterfly clip | 450×630,530×530, 630×630,630×830, 830×830,830×1230, 1030×1030,1330×1330 |
A: four sides equivalent AL: long sides equivalent AS: short sides equivalent |
B | Double sides opening, weathertight |
wedge shaped clip | 450×630,530×530, 630×630,630×830, 830×830,830×1230 |
B: four sides equivalent BL: long sides equivalent BS: short sides equivalent |
C | Quick action, weathertight |
centre ture clip | 530×530,630×630, Ф530,Ф630 |
~ |
D | Flush,weathertight | wedge shaped clip | 530×530,630×630, 630×830,830×830 |
D: four sides equivalent DL: long sides equivalent DS: short sides equivalent |
E | Single opening, non weathertight |
butterfly clip | 450×630,530×530, 630×630,630×830, 830×830 |
E: four sides equivalent EL: long sides equivalent ES: short sides equivalent |
F | Both sides opening, non weathertight |
butterfly clip | 450×630,530×530, 630×630,630×830, 830×830 |
F: four sides equivalent FL: long sides equivalent FS: short sides equivalent |
- Specification for type A,AL,AS hatch cover
Nominal size mm LxB |
Clear size mm L1xB1xR100 |
Cover size mm L2xB2 |
Cover thickness mm t |
Hatch thickness mm t0 |
Hatch height mm H |
Butterfly clip diaxq’ty |
Weight kg |
450×630 | 420×600 | 508×688 512×692 516×696 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M16x4 | 24.4 31.1 37.7 |
530×530 | 500×500 | 588×588 592×592 596×596 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M16x4 | 24.2 30.8 37.4 |
630×630 | 600×600 | 688×688 692×692 696×696 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M20x4 | 31 39.8 48.5 |
630×830 | 600×800 | 688×888 692×892 696×896 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M20x4 | 37.4 48.5 59.7 |
630×830 | 800×800 | 888×888 892×892 896×896 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M20x6 | 47.1 61.2 75.3 |
830×1230 | 800×1200 | 888×1288 892×1292 896×1296 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
M20x8 | 65.2 85.3 175.2 |
1030×1030 | 1000×1000 | 1092×1092 1096×1096 |
4 8 |
4,6 6,8 |
800 | M20x8 | 146.6 190.9 |
1330×1330 | 1300×1300 | 1396×1396 | 8 | 8,11 | 800 | M20x8 | 331.3 |
Note:Hatch cover height & thickness up to buyer’s choice.
- Specification for type B,BL,BS hatch cover
Nominal size mm LxB |
Clear size mm L1xB1xR100 |
Cover size mm L2xB2 |
Cover thickness mm t |
Hatch thickness mm t0 |
Hatch height mm H |
Butterfly clip Q’ty |
Weight kg |
450×630 | 420×600 | 502×688 512×692 516×696 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
4 | 28.7 35.4 42.0 |
530×530 | 500×500 | 588×588 592×592 596×596 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
4 | 28.5 35.1 41.7 |
630×630 | 600×600 | 682×688 692×692 696×696 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
4 | 33.5 42.4 51.2 |
630×830 | 600×800 | 688×888 692×892 696×896 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
4 | 39.7 51.2 62.3 |
630×830 | 800×800 | 888×888 892×892 896×896 |
4 6 8 |
4,6 6,8 8,11 |
100,150 200,250 450,600 |
6 | 51.2 65.3 79.4 |
830×1230 | 800×1200 | 888×1288 892×1292 |
4 6 |
4,6 6,8 |
100,150 200,250 450,600 |
8 | 71.4 91.5 |
Note:Hatch cover height & thickness up to buyer’s choice.
- Specification for type C hatch cover
Nominal size mm LxB or Ф |
Clear size mm L1xB1xR100 or Ф1 |
Cover size mm L2xB2 or Ф2 |
Cover thickness mm t |
Hatch thickness mm t0 |
Hatch height mm H |
Center ture clip Q’ty |
Weight kg |
530×530 | 500×500 | 588×588 592×592 596×596 |
4 6 8 |
4,6 6,8 8,11 |
150,200 250,450 600 |
4 | 44.8 51.4 58.0 |
630×630 | 600×600 | 682×688 692×692 696×696 |
4 6 8 |
4,6 6,8 8,11 |
150,200 250,450 600 |
4 | 50.0 58.7 67.5 |
Ф530 | 500 | 588 592 596 |
4 6 8 |
4,6 6,8 8,11 |
150,200 250,450 600 |
4 | 42.2 47.5 52.8 |
Ф630 | 600 | 688 692 696 |
4 6 8 |
4,6 6,8 8,11 |
150,200 250,450 600 |
4 | 46.1 53.2 60.2 |
Note:Hatch cover height & thickness up to buyer’s choice.

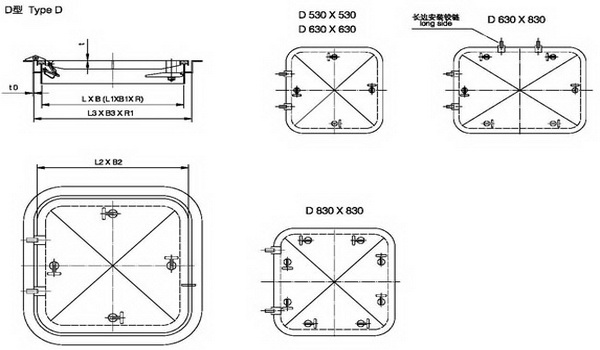

- Specification for type D,DL,DS & 630×630 hatch cover
Nominal size mm LxB |
Clear size mm L1xB1xR115 |
Cover size mm L2xB2 |
Opening size of wall mm L3xB3xR1 |
Cover thickness mm t |
Hatch thickness mm t0 |
Clip q’ty |
Weight kg |
530×530 | 530×530 | 588×588 592×592 596×596 |
622x622x161 622x622x161 622x622x163 |
4 6 8 |
6 6 8 |
4 | 46.7 53.3 63.6 |
630×630 | 630×630 | 682×688 692×692 696×696 |
722x722x161 722x722x161 726x726x163 |
4 6 8 |
6 6 8 |
4 | 57.4 66.1 80.5 |
630×830 | 630×830 | 688×888 692×892 696×896 |
722x922x161 726x926x163 726x926x163 |
4 6 8 |
6 8 8 |
4 | 73.9 91.5 106.3 |
830×830 | 830×830 | 892×892 896×896 |
926x926x163 926x926x163 |
6 8 |
8 8 |
8 | 114.9 129.0 |
- Specification for type E,EL,ES & F,FL,FS hatch cover
Nominal size mm LxB |
Clear size mm L1xB1xR100 |
Cover size mm L2xB2 |
Cover thickness mm t |
Hatch thickness mm t0 |
Hatch height mm H |
Clip Ф |
Weight kg E |
Weight kg F |
450×630 | 420×600 | 508×688 512×692 |
4 6 |
4,6 6,8 |
100 150 200 |
M16 | 20.9 27.6 |
22.2 28.8 |
530×530 | 500×500 | 588×588 592×592 |
8 4 |
4,6 6,8 |
100 150 200 |
M16 | 20.7 27.3 |
22.0 28.5 |
630×630 | 600×600 | 688×688 692×892 |
6 8 |
4,6 6,8 |
100 150 200 |
M20 | 26.3 35.1 |
27.0 35.9 |
630×830 | 600×800 | 688×888 692×892 |
4 6 |
4,6 6,8 |
100 150 200 |
M20 | 32.5 43.6 |
33.1 44.2 |
830×830 | 800×800 | 888×888 892×892 |
8 6 |
4,6 6,8 |
100 150 200 |
M20 | 39.2 53.3 |
40.5 54.5 |
Note:Hatch cover height & thickness up to buyer’s choice.
