Steel Door (CB751-68)
- Application
Used for working cabin and inland ship
- Specification

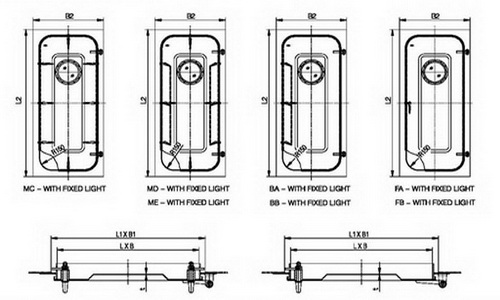

Type | Normal size mm LxBxR150 |
Opening size of wall mm L1xB1xR180 |
External size mm L2xB2 |
Leaf thickness t |
Q’ty of clip |
MC MD ME |
1500×600 | 1560×660 | 1668×768 | 3 | 4~6 |
MC MD ME |
1600×700 | 1660×760 | 1768×868 | 3 | 4~6 |
MC MD ME |
1650×600 | 1710×660 | 1818×768 | 3 | 4~6 |
BA BB |
1500×600 | 1560×660 | 1668×768 | 3 | 1~2 |
BA BB |
1600×700 | 1660×760 | 1768×686 | 3 | 1~2 |
BA BB |
1650×600 | 1710×660 | 1818×768 | 3 | 1~2 |
FA FB |
1500×600 | 1560×660 | 1668×768 | 3 | / |
FA FB |
1600×700 | 1660×760 | 1768×868 | 3 | / |
FA FB |
1650×600 | 1710×660 | 1818×768 | 3 | / |
