Marine Side Scuttle
- Application
Used for sea-going vessel and warship,and also can be used for inland ship.
Name | Type | Clear size mm D |
Opening opening |
Opening fixed |
Installation | Material code bolted |
Material code welding |
Deadlight opening |
Heavy | A | 200,250,300,350,400 | L,R,S | Fixed(N) | bolted(B) welding(W) |
112 | 212,222 | G,J |
Medium | B | 200,250,300,350,400,450 | L,R,S | Fixed(N) | bolted(B) welding(W) |
112,222,333 | 212,222,233 | G,J |
Light | C | 200,250,300,350,400,450 | L,R | Fixed(N) | bolted(B) welding(W) |
220,330,110 | 210,220,230 | ~ |
* The glass can be transparent(Y1) or frosted(Y2) for Heavy,Medium and Light side scuttle.
* Application
- Heavy: the part with watertight & gastight requirements,above full load waterline,below freeboard.
- Medium: Above freeboard,first deck for cargo vessel.
- Light: Above freeboard for passenger vessel.
- Material composition code
Type | Installation | Main frame | Glass holded&retaining frame | Deadlight | Material code |
A | bolted | Cu(1) | Cu(1) | At(2) | 112 |
A | welding | At(2) At(2) |
Cu(1) At(2) |
At(2) At(2) |
212 222 |
B | bolted | Cu(1) At(2) Al(3) |
Cu(1) At(2) Al(3) |
At(2) At(2) Al(3) |
112 222 333 |
B | welding | At(2) At(2) At(2) |
Cu(1) At(2) Al(3) |
At(2) At(2) Al(3) |
212 222 233 |
C | bolted | At(2) Al(3) Cu(1) |
At(2) Al(3) Cu(1) |
~ | 220 330 110 |
C | welding | At(2) At(2) At(2) |
Cu(1) At(2) Al(3) |
~ | 210 220 230 |
Clear size mm |
200 | 250 | 300 | 350 | 400 | 450 |

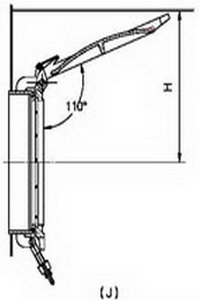

Min.distance between the scuttle center and ceiling H Type J |
350 | 400 | 450 | 500 | 540 | 580 |

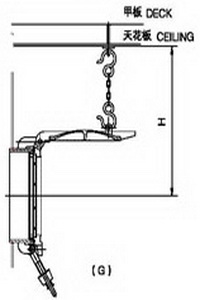

* For the Type G,the Min.distance between the scuttle center and ceiling will be determined by the customer.

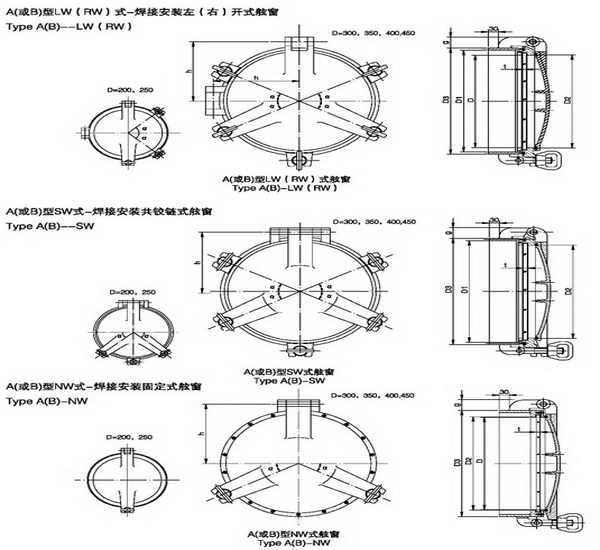

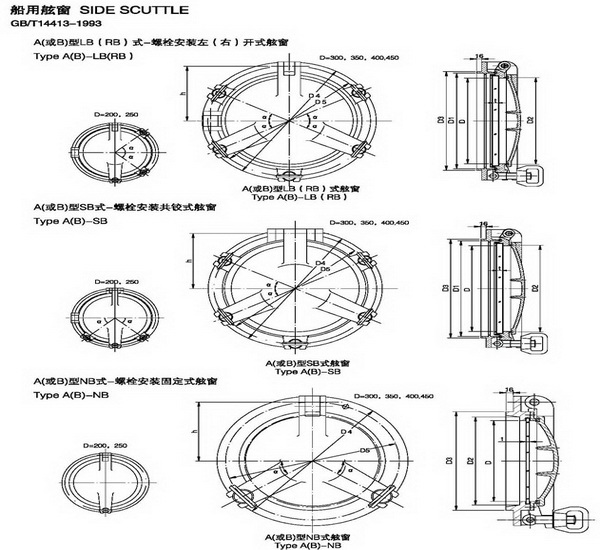

- Specification for Leavy & Medium side scuttle(mm)
Clear size D Ф |
D1 | D2 | D3 | D4 | D5 | h | t A |
t B |
Gmax | Bolt whorl |
Bolt q’ty |
Opening size of wall |
200 | 245 | 204 | 250 | 350 | 310 | 155 | 10 | 8 | 50 | M16(12) | 8 | 253 |
250 | 295 | 254 | 305 | 400 | 364 | 182 | 12 | 8 | 47.5 | M16 | 8 | 308 |
300 | 350 | 304 | 360 | 450 | 414 | 207 | 15 | 10 | 45 | M16 | 12 | 363 |
350 | 400 | 354 | 410 | 500 | 464 | 232 | 15 | 12 | 45 | M18 | 12 | 413 |
400 | 450 | 404 | 460 | 550 | 514 | 257 | 19 | 12 | 45 | M18 | 12 | 463 |
450 | 500 | 454 | 510 | 600 | 564 | 282 | ~ | 15 | 45 | M20 | 12 | 513 |
* For the D=Ф450,only used for Medium side scuttle

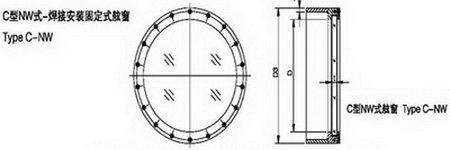

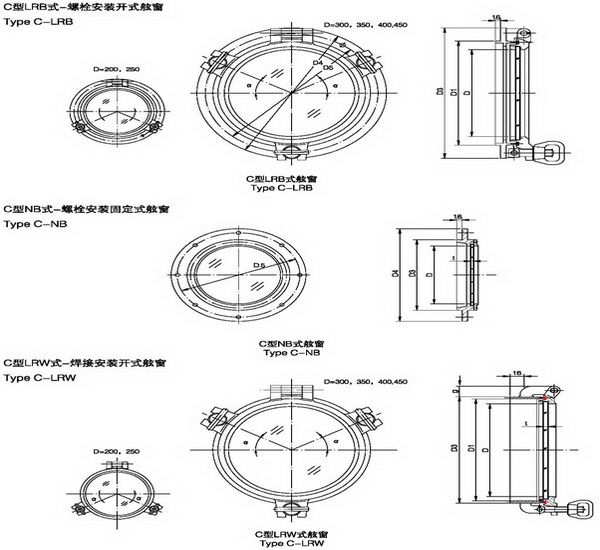

- Specification for Light side scuttle(mm)
Clear size D Ф |
D1 | D2 | D3 | D4 | h | t | Gmax | Bolt whorl |
Bolt q’ty |
Opening size of wall |
200 | 245 | 250 | 350 | 310 | 155 | 6 | 50 | M12 | 8 | 253 |
250 | 295 | 305 | 400 | 364 | 182 | 6 | 47.5 | M16 | 8 | 308 |
300 | 350 | 360 | 450 | 414 | 207 | 8 | 45 | M16 | 12 | 363 |
350 | 400 | 410 | 500 | 464 | 232 | 8 | 45 | M18 | 12 | 413 |
400 | 450 | 460 | 550 | 514 | 257 | 10 | 45 | M18 | 12 | 463 |
450 | 500 | 510 | 600 | 564 | 282 | 10 | 45 | M20 | 12 | 513 |
