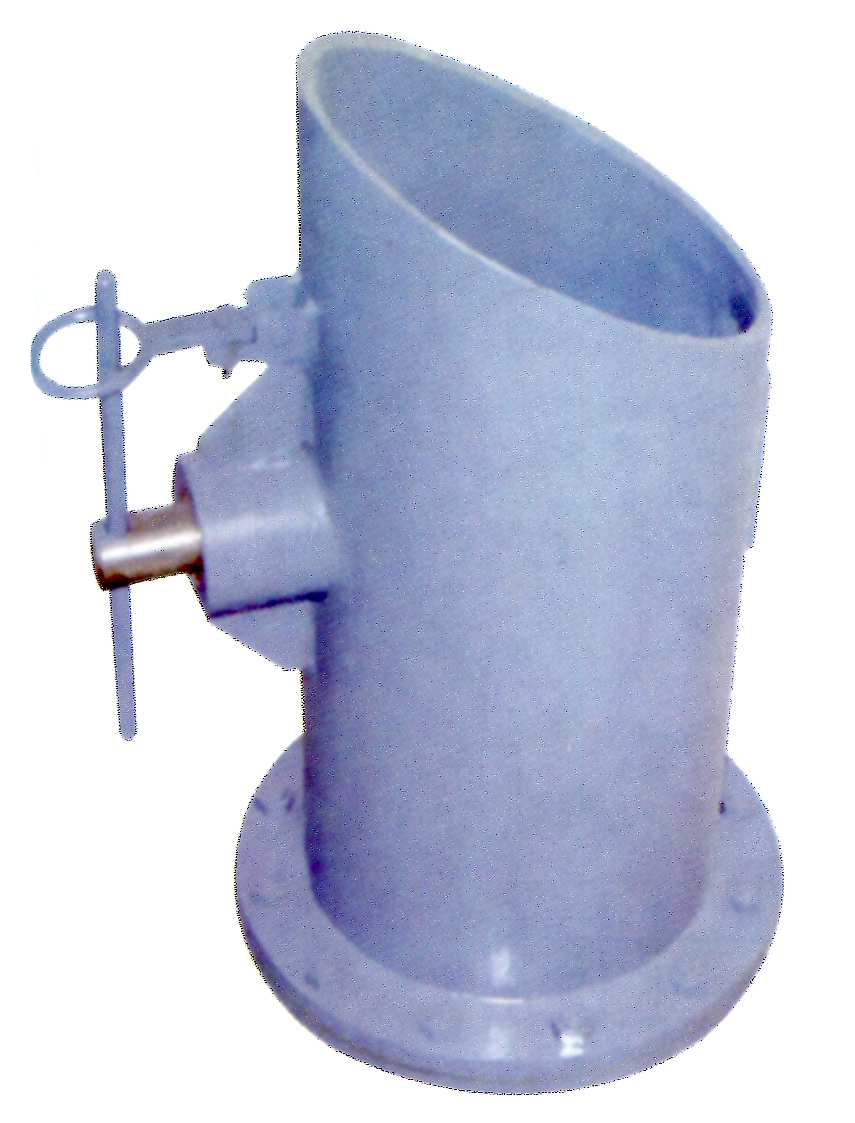

DIN 81906 German Standard Anchor Releaser
Specification
Dia. of anchor chain | Ød1 x s1 | Ød2 | l1 | u1 | u2 |
36 38 40 42 44 46 |
273 x 12.5 | 375 | 735 | 75 | 75 |
48 50 52 54 56 |
323.9 x 14.2 | 440 | 835 | 95 | 90 |
58 60 62 64 66 68 |
406.4 x 16 | 540 | 995 | 110 | 95 |
70 73 76 78 81 |
508 x 17.5 | 645 | 1245 | 105 | 100 |
84 87 90 92 |
508 x 17.5 | 645 | 1245 | 130 | 150 |
95 97 100 102 105 |
610 x 20 | 754 | 1430 | 130 | 150 |
107 111 114 |
610 x 20 | 754 | 1430 | 170 | 185 |
117 120 122 124 127 |
711 x 22.2 | 856 | 1615 | 170 | 185 |
130 132 137 |
813 x 22.2 | 958 | 1790 | 170 | 185 |
142 147 152 |
914 x 25 | 1060 | 1970 | 190 | 200 |
