Aluminum Double Leaf Sliding Window

  • Application

The window is used in wheelhouse or superstructure above freeboard deck of various types of vessels.

aluminum double leaf sliding window

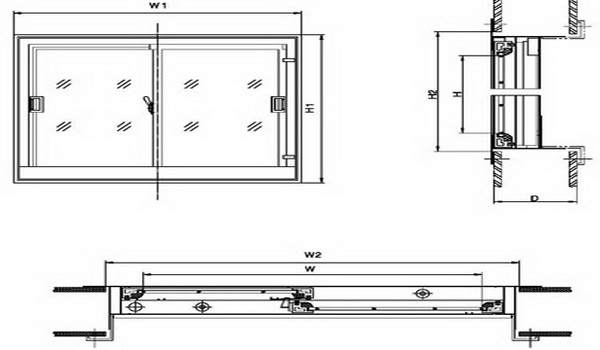

  • Specification
No. Clear size
mm
WxH		 External size mm
W1xH1		 Opening size of wall
mm
W2xh2		 Lining thickness D mm Weight
kg
1 500×300 644×444 600×400 80~120 7.8
2 700×400 844×544 800×500 80~120 9.2
3 800×500 944×644 900×600 80~120 12.4
4 900×600 1044×744 1000×700 80~120 15.7
5 1000×700 1144×844 1100×800 80~120 18.4
