Ultrahigh Molecular Weight Polyethylene(UHMWPE)
General:
- The product is made of UHMWPE Fibers and ultra-high molecular weight polyethylene fiber, which is one of the strongest fibers in the world and is the excellent replacement of wire rope.
- The rope as inert material has excellent resistance to UV and oxidation resistance.
- The rope has excellent resistance to bending strength. According to the international Marine industry Association test method currently that its extremely surprising fatigue strength is more than 20 times than that of steel wire rope, polyamide rope and polyester cord and 30 times over that of polypropylene rope.
- At only 1/8th the weight of wire, it is a safe and efficient solution for all marine applications where wire is traditionally used. The combination of UHMWPE provides abrasion and tension fatigue resistance for superior wear.
- The product is widely used in the military equipment, spaceflight aviation, ocean-going ships and oil platforms, naval vessel, special electric power communication cable, large container ship and may other fields.
Main performance
- Material: UltraHigh Molecular Weight Polyethylene(UHMWPE)
- Construction: 8 ,12 strand plaited
- Application: Marine fishing, offshore
- Colour of rope: Yellow (also available by special order in red, green, blue, orange and so on)
- Specific Gravity: Density 0.975 floating
- Melting Point: 145 ℃
- Abrasion Resistance: Excellent
- U.V Resistance: Good
- Temperature Resistance: 70 ℃ max continuous
- Chemical Resistance: Excellent
- Dry & wet conditions: Wet strength equals dry strength
- Range of use: Fishing, inland shipping, merchant, navy, industry, mooring
- Coil length: 220 m
- Spliced strength: 10% lower
- Weight and length tolerance: ± 5%
- MBL= Minimum Breaking Load confirm ISO 2307
- Other sizes available upon request
UHMWPE fiber rope has the following four representative types: Type L8 strands, Type T12 strands, Type C braided rope and Ocean engineering platform rope.

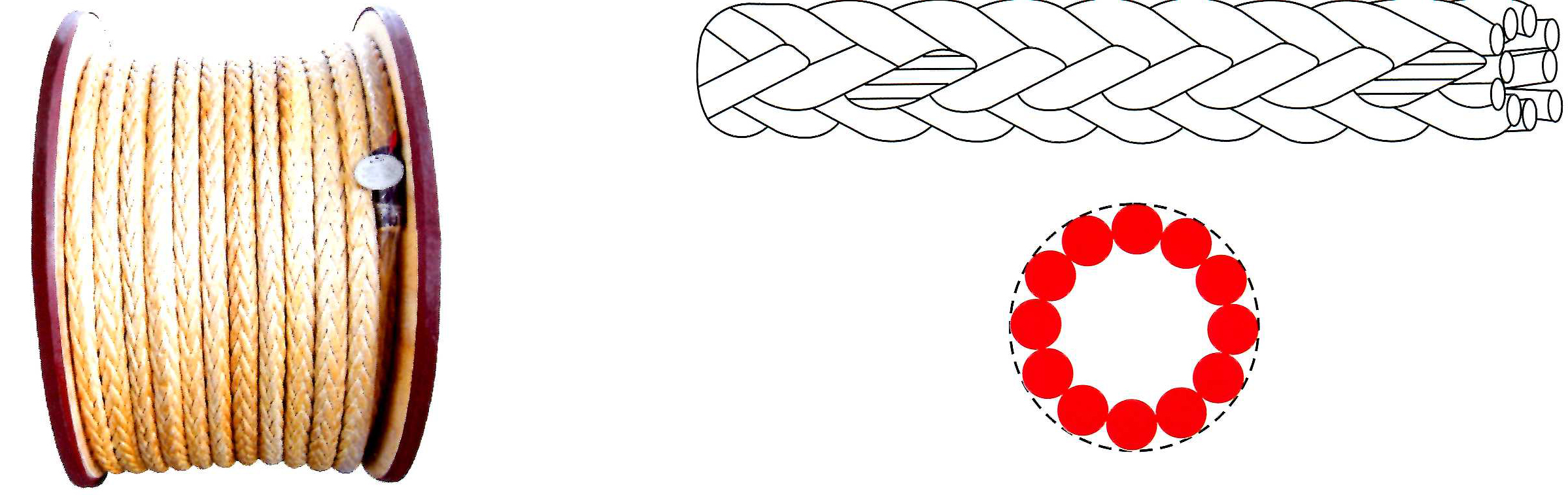

A) UHMWPE Rope 8, 12 Strand (Type L/ Type T)
Linear density and minimum breaking force of 8- strand (Type L) and 12- strand(Type T)
Specification Dia |
Minimum breaking force Ropes with eye-spliced terminations KN Super-high strength |
Minimum breaking force Ropes with eye-spliced terminations KN High strength |
6 | 33 | 29.7 |
8 | 58.7 | 52.8 |
10 | 92 | 82.8 |
12 | 132 | 119 |
14 | 180 | 162 |
16 | 235 | 212 |
18 | 283 | 255 |
20 | 340 | 306 |
22 | 400 | 360 |
24 | 470 | 423 |
26 | 540 | 486 |
28 | 610 | 549 |
30 | 690 | 621 |
32 | 780 | 702 |
34 | 860 | 774 |
36 | 940 | 846 |
38 | 1040 | 936 |
40 | 1130 | 1020 |
44 | 1310 | 1180 |
48 | 1530 | 1380 |
52 | 1770 | 1590 |
56 | 2030 | 1830 |
60 | 2280 | 2050 |
64 | 2560 | 2300 |
68 | 2850 | 2560 |
72 | 3170 | 2850 |
76 | 3500 | 3150 |
80 | 3870 | 3480 |
88 | 4680 | 4210 |
96 | 5560 | 5000 |
B) UHMWPE covered rope (Type C)
Conforms to ISO 10325: 2009 Fiber ropes – Ultra high molecular weight polyethylene – 8 strand braided ropes, 12 strand braided ropes and covered ropes
Linear density and minimum breaking force of covered HMPE ropes (Type C)
Specification Dia |
Minimum breaking force Ropes with eye-spliced terminations KN Super-high strength |
Minimum breaking force Ropes with eye-spliced terminations KN High strength |
20 | 244 | 220 |
22 | 307 | 276 |
24 | 362 | 326 |
26 | 424 | 382 |
28 | 494 | 445 |
30 | 573 | 516 |
32 | 662 | 596 |
34 | 742 | 668 |
36 | 821 | 739 |
38 | 909 | 818 |
40 | 1030 | 927 |
44 | 1240 | 1120 |
48 | 1450 | 1310 |
52 | 1730 | 1560 |
56 | 1970 | 1770 |
60 | 2270 | 2040 |
64 | 2590 | 2330 |
68 | 2930 | 2640 |
72 | 3270 | 2940 |
76 | 3620 | 3260 |
80 | 4060 | 3650 |
88 | 4820 | 4340 |
96 | 5650 | 5080 |
3) UHMWPE fiber rope for Offshore stationkeeping
- Confirms to ISO/TS14909: 2012 High modulus polyethylene fiber ropes for offshore stationkeeping
- Platform mooring ropes creep requirement: The length of the rope of nominal length should be in multiples of 100 meters. In the case of less than 20% of mbs (except otherwise stipulated in the contract), platform mooring rope structure by Neutral reverse-type (tf) rope can be used with the chain, or a neutral metal rope together with the structure of the reverse twist wring of mooring system.
Specification Dia |
Min. breaking strength KN |
63 | 2500 |
71 | 3200 |
80 | 4000 |
90 | 5000 |
100 | 6300 |
106 | 7100 |
112 | 8000 |
118 | 9000 |
125 | 10000 |
132 | 11200 |
140 | 12500 |
150 | 14000 |
160 | 16000 |
170 | 18000 |
180 | 20000 |
