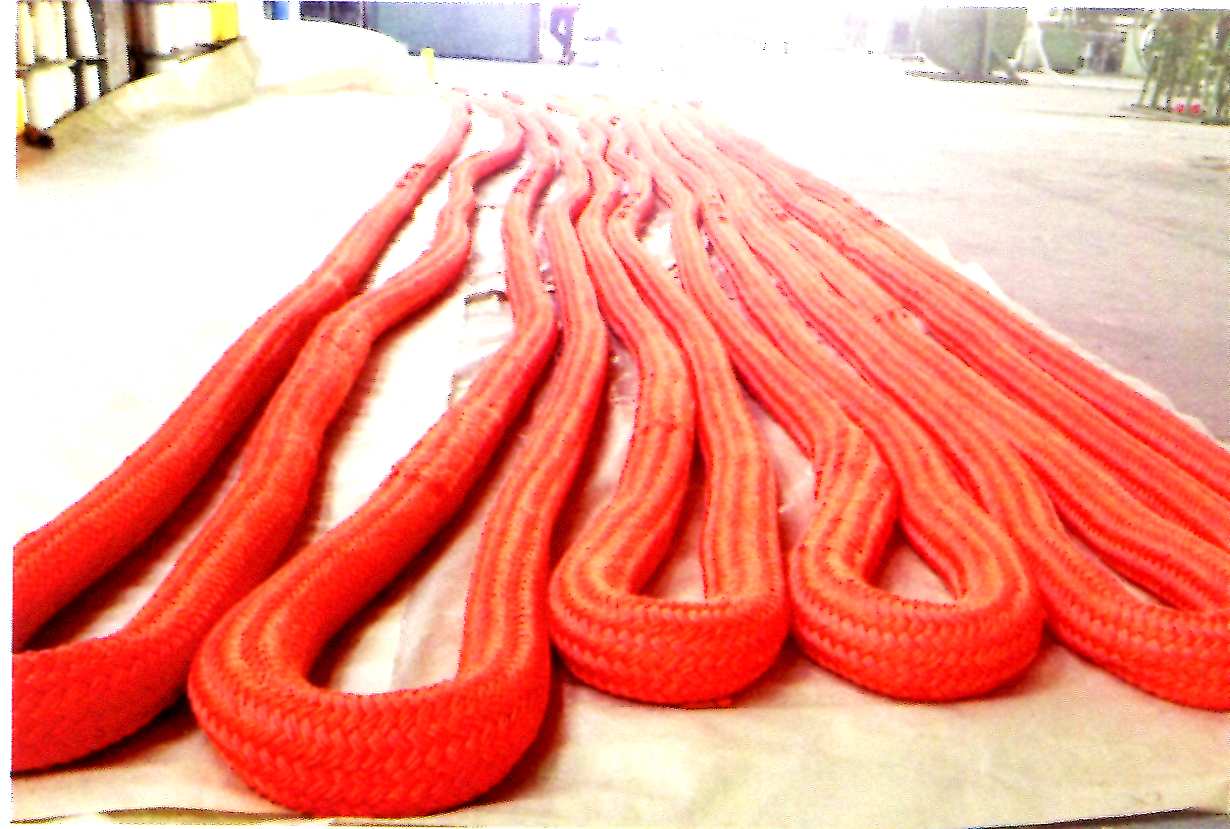

UHMWPE Loop Sling
General
- This product is our company independent research and development of ultra high strength polyethylene fiber composite ring sling.
- The products have high bearing capacity, light weight, low elongation, convenient operation, corrosion resistance, good abrasion resistance, long service life, high safety coefficient, convenient maintenance and repair.
- The bearing core cable is with polyethylene fibers made of super strength, slinging the outer protective layer of the synthetic fibers by mechanical woven. According to the different environment for the production of various series of sling and sling products, the application range is 0.5T – 1000T.
- It should be noted that the outer protective layer shall be examined during the period of before/after using of sling. Once found there are serious damages of protective layer, breaking of string yarn or seeing of inner core, the sling shall be repaired at once. The repairing is simple and convenient.
- The production technology of this product is international initiative.
- Except it, we can also design polyester sling & nylon sling, which are depending customer’s requirements.
UHMWPE Loop Sling
Model | Specification Dia. |
Rated load KG |
Model | Specification Dia. |
Rated load KG |
UPE01-1 | 12 | 1000 | UPE01-40 | 70 | 40000 |
UPE01-2 | 16 | 2000 | UPE01-50 | 80 | 50000 |
UPE01-3 | 18 | 3000 | UPE01-60 | 85 | 60000 |
UPE01-4 | 20 | 4000 | UPE01-70 | 90 | 70000 |
UPE01-5 | 24 | 5000 | UPE01-80 | 95 | 80000 |
UPE01-6 | 26 | 6000 | UPE01-90 | 100 | 90000 |
UPE01-8 | 30 | 8000 | UPE01-100 | 110 | 100000 |
UPE01-10 | 35 | 10000 | UPE01-150 | 150 | 150000 |
UPE01-15 | 40 | 15000 | UPE01-200 | 165 | 200000 |
UPE01-20 | 50 | 20000 | UPE01-300 | 185 | 300000 |
UPE01-25 | 55 | 25000 | UPE01-400 | 210 | 400000 |
UPE01-30 | 65 | 30000 | UPE01-500 | 230 | 500000 |
*Other sizes available upon request
