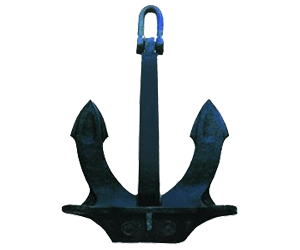

U.S.N stockless anchor

  • Description

The U.S.N. stockless anchor has been widely approved by many clients.
Especially used for navy ships in USA.
The ship anchor has been qualified by all main Classification Societies in the world such as NK, DNV, GL, LR, BV, ABS, CCS, KR, RINA etc.
The weight is ranged from 100kg to 30000kg.
U.N.S stockless anchor

  • Specification
Nominal weight
kg(Lb)
A
mm
h
mm
h1
mm
L
mm
L1
mm
B
mm
45(100) 540 382 51 126 413 264
68(150) 618 438 58 145 473 302
91(200) 654 464 62 151 502 318
136(300) 727 516 70 164 562 350
159(350) 762 542 72 170 591 367
181(400) 800 568 75 176 619 384
227(500) 864 612 81 191 667 413
272(600) 914 651 85 202 709 439
340(750) 987 700 92 218 764 474
454(1000) 1071 771 102 239 841 521
567(1250) 1168 830 110 258 902 559
680(1500) 1245 883 116 273 962 597
907(2000) 1372 972 135 302 1059 656
998(2200) 1387 1003 140 311 1092 676
1134(2500) 1473 1048 143 324 1140 706
1361(3000) 1613 1130 150 352 1270 775
1588(3500) 1648 1171 153 363 1273 789
1814(4000) 1724 1225 160 379 1334 827
2268(5000) 1854 1319 173 408 1437 889
2722(6000) 1975 1403 185 435 1529 948
3175(7000) 2083 1475 195 458 1606 996
4082(9000) 2261 1613 210 492 1753 1080
5216(11500) 2450 1740 229 540 1896 1175
6000(13228) 2450 1740 229 540 1896 1175
8165(18000) 2845 2020 270 615 2100 1364
9072(20000) 2946 2094 276 648 2280 1413
11340(25000) 3175 2256 297 699 2456 1522
13608(30000) 3372 2394 316 742 2608 1616

* The above data is subject to our final confirmation.
