TIPTO EIGHT Rope
General:

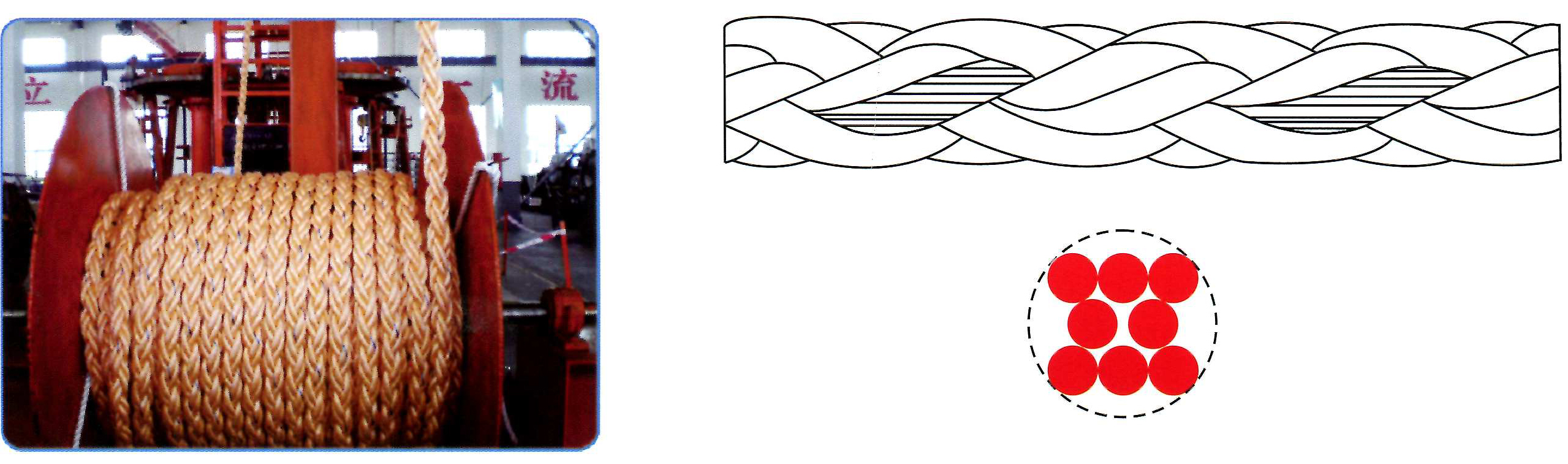

TIPTO EIGHT rope retains superior breaking strength originated from technically reinforced composition of high tenacity JL-yarn and polyester. This ideal composition and construction creates extremely low elongation which offers stability and safety when the rope is overloaded and makes the rope sustaining its properties even after a long period using in sea water. This rope has excellent resistance to abrasion and will become more flexible and easier to handle with extensive use. They are produced by a plaiting machine containing eight reels, each containing one strand, groups of two reels interweave as a pair around the other pairs of reels to produce an eight strands rope of a similar square cross section.
Main performance
- Material: High tenacity JL-yarn & High tenacity Polyester
- Construction: 8 strand plaited
- Application: Marine fishing, offshore
- Color of rope: Orange with green marker yarn
- Approx. spec. density: 0.94 floating
- Melting Point: 165 ℃ / 260℃
- Abrasion Resistance: Very good
- U.V Resistance: Good
- Temperature Resistance: 70 ℃ Max continuous
- Chemical Resistance: Reasonable, acids, oxidizer & solvents will affect the material
- Dry & Wet Conditions: Wet strength equals dry strength
- Range of use: Fishing, inland shipping, merchant, navy, industry, mooring
- Coil Length: 220 m
- Spliced strength: 10% lower
- Weight and length tolerance: ± 5%
- MBL= Minimum Breaking Load confirm ISO 2307
- Other sizes available upon request
Parameter table
Specification Dia |
Specification Cir. |
Weight KGS/100M |
Weight LBS/100FT |
Breaking strength Ton |
Breaking strength KN |
24 | 3 | 28.8 | 19.4 | 11063 | 108.5 |
28 | 3-1/2 | 39.6 | 26.6 | 14691 | 144.1 |
32 | 4 | 51.2 | 34.4 | 18851 | 184.9 |
36 | 4-1/2 | 63.8 | 42.9 | 23453 | 230.1 |
40 | 5 | 78.7 | 52.9 | 28320 | 277.8 |
44 | 5-1/2 | 93.7 | 63.0 | 33630 | 329.9 |
48 | 6 | 114 | 76.3 | 38940 | 382 |
52 | 6-1/2 | 129 | 86.7 | 45135 | 443 |
56 | 7 | 154 | 103 | 52215 | 512 |
60 | 7-1/2 | 172 | 116 | 59295 | 582 |
64 | 8 | 194 | 131 | 66375 | 651 |
68 | 8-1/2 | 218 | 147 | 74340 | 729 |
72 | 9 | 244 | 164 | 83190 | 816 |
80 | 10 | 300 | 202 | 100890 | 990 |
88 | 11 | 361 | 243 | 122130 | 1198 |
96 | 12 | 430 | 289 | 144255 | 1415 |
104 | 13 | 503 | 335 | 168972 | 1655 |
112 | 14 | 580 | 390 | 195585 | 1919 |
120 | 15 | 666 | 447 | 223905 | 2196 |
*Other sizes available upon request
