Superline
General:

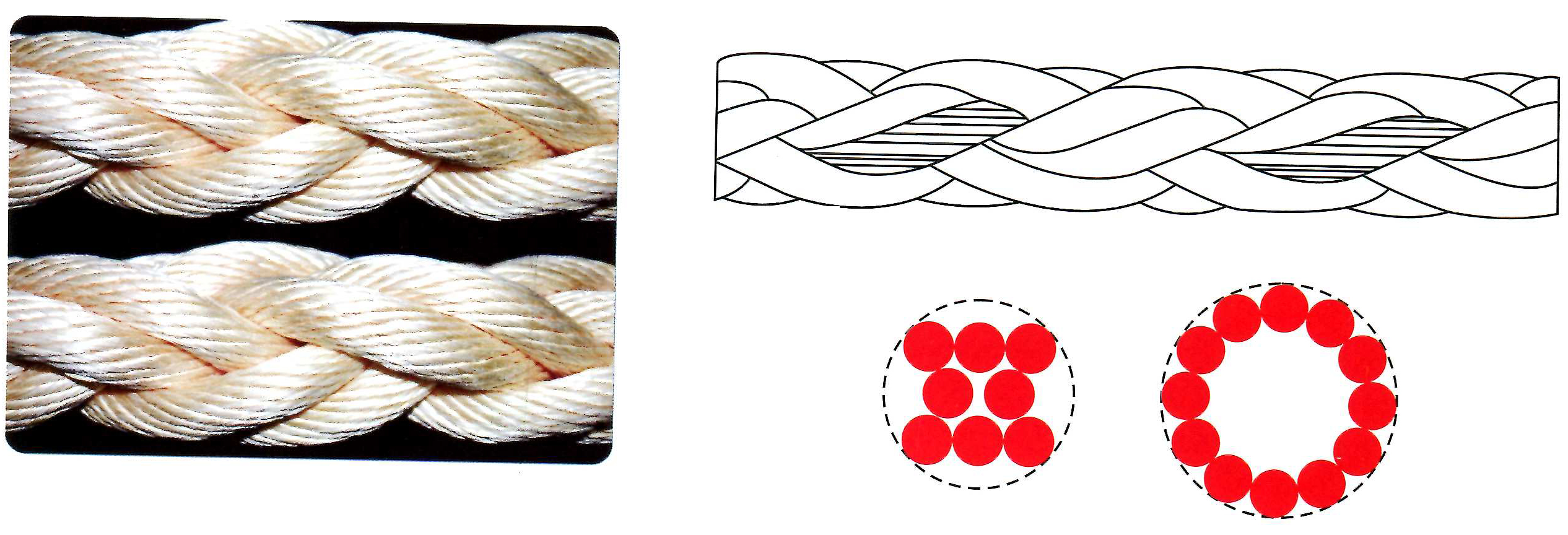

Plaited ropes of the SUPERLINE range are mainly used in marine and offshore fields. Because of easily handling and non-rotating behavior. They are produced by a plaiting machine containing eight or twelve reels, each containing one strand and the rope is braided by eight or twelve interlacing strands.
Main performance
- Material: High tensity yarn.
- Construction: 8 or 12 strand plaited
- Application: Marine fishing, offshore
- Colour of rope: White
- Specific Gravity: Density 0.92 floating
- Melting Point: 165 ℃
- Abrasion Resistance: Medium
- U.V Resistance: Medium
- Temperature Resistance: 70 ℃ max continuous
- Chemical Resistance: Good, solvents and strong oxidizer may have a mild effect
- Dry & wet conditions: Wet strength equals dry strength
- Range of use: Fishing, inland shipping, merchant, navy, industry, mooring
- Coil length: 220 m
- Spliced strength: 10% lower
- Weight and length tolerance: ± 5%
- MBL= Minimum Breaking Load confirm ISO 2307
- Other sizes available upon request
Parameter table
Specification Dia |
Specification Cir. |
Weight KG/100m |
Weight LBS/100FT |
B/S KG |
B/S KN |
24 | 3 | 27 | 18 | 9600 | 94 |
28 | 3-1/2 | 37 | 25 | 12800 | 126 |
32 | 4 | 49 | 33 | 16240 | 159 |
36 | 4-1/2 | 61 | 41 | 20240 | 199 |
40 | 5 | 75 | 51 | 24960 | 245 |
44 | 5-1/2 | 93 | 62 | 30240 | 297 |
45 | 5-5/8 | 97 | 65 | 31520 | 309 |
48 | 6 | 109 | 73 | 35040 | 344 |
50 | 6-1/4 | 118 | 80 | 38080 | 374 |
52 | 6-1/2 | 127 | 86 | 40640 | 399 |
55 | 6-7/8 | 143 | 96 | 45600 | 447 |
56 | 7 | 148 | 100 | 46800 | 459 |
60 | 7-1/2 | 170 | 114 | 53280 | 523 |
64 | 8 | 193 | 130 | 59840 | 587 |
65 | 8-1/16 | 200 | 134 | 61600 | 604 |
68 | 8-1/2 | 219 | 147 | 67040 | 658 |
70 | 8-11/16 | 231 | 155 | 70960 | 696 |
72 | 9 | 245 | 165 | 75200 | 738 |
75 | 9-1/4 | 266 | 178 | 81440 | 799 |
80 | 10 | 303 | 204 | 92800 | 910 |
85 | 10-1/2 | 342 | 230 | 104800 | 1028 |
88 | 11 | 367 | 246 | 110400 | 1083 |
90 | 11-1/8 | 383 | 258 | 115200 | 1130 |
95 | 11-3/4 | 427 | 287 | 128000 | 1256 |
96 | 12 | 436 | 293 | 130400 | 1279 |
100 | 12-3/8 | 473 | 318 | 140800 | 1381 |
104 | 13 | 509 | 342 | 149600 | 1468 |
112 | 14 | 592 | 398 | 172000 | 1687 |
120 | 15 | 682 | 458 | 196800 | 1930 |
