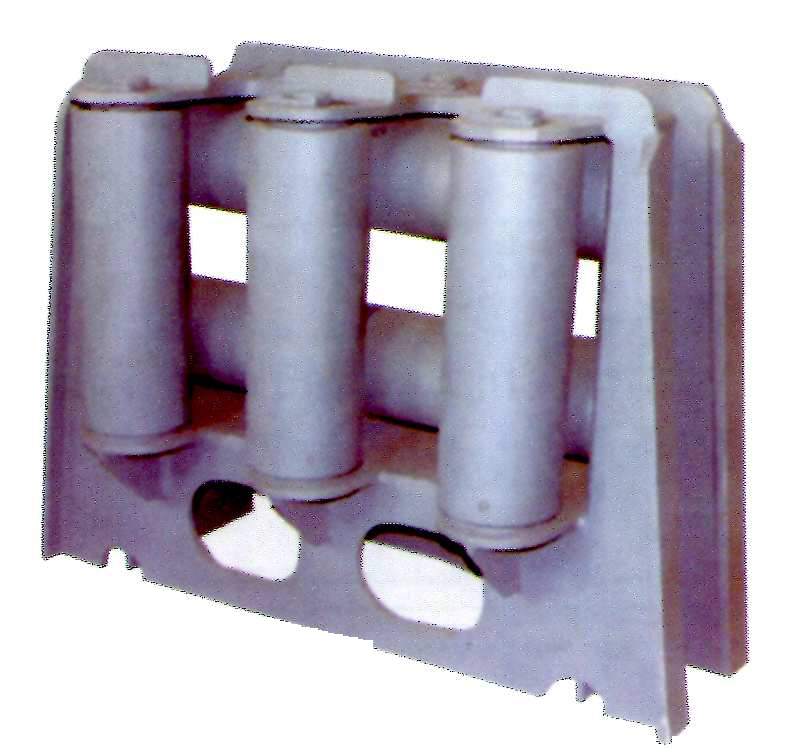

Roller Fairlead
1)Three-roller fairlead- Type A, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 644 | 508 | 138 |
22.5 | 40 | 200 | 728 | 552 | 212 |
26.0 | 45 | 200 | 776 | 606 | 273 |
32.0 | 70 | 220 | 880 | 670 | 401 |
34.5 | 80 | 240 | 940 | 710 | 469 |
37.5 | 85 | 240 | 1030 | 770 | 678 |
43.0 | 95 | 260 | 1136 | 820 | 866 |
52.0 | 100 | 260 | 1256 | 910 | 1197 |
60.5 | – | 300 | 1430 | 1000 | 1741 |
68.0 | – | 320 | 1690 | 1130 | 2811 |
2) Four-roller fairlead- Type BA, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 744 | 508 | 173 |
22.5 | 40 | 200 | 848 | 552 | 264 |
26.0 | 45 | 200 | 906 | 606 | 337 |
32.0 | 70 | 220 | 1030 | 670 | 485 |
34.5 | 80 | 240 | 1100 | 710 | 583 |
37.5 | 85 | 240 | 1210 | 770 | 823 |
43.0 | 95 | 260 | 1336 | 820 | 1064 |
3) Four-roller fairlead- Type BB, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 644 | 508 | 155 |
22.5 | 40 | 200 | 728 | 552 | 239 |
26.0 | 45 | 200 | 776 | 606 | 306 |
32.0 | 70 | 220 | 880 | 670 | 450 |
34.5 | 80 | 240 | 940 | 710 | 576 |
37.5 | 85 | 240 | 1030 | 770 | 756 |
43.0 | 95 | 260 | 1136 | 820 | 987 |
52.0 | 100 | 260 | 1256 | 910 | 1370 |
60.5 | – | 300 | 1430 | 1000 | 2008 |
68.0 | – | 320 | 1690 | 1130 | 3352 |
4) Five-roller fairlead- Type C, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 644 | 508 | 182 |
22.5 | 40 | 200 | 728 | 552 | 282 |
26.0 | 45 | 200 | 776 | 606 | 360 |
32.0 | 70 | 220 | 880 | 670 | 532 |
34.5 | 80 | 240 | 940 | 710 | 675 |
37.5 | 85 | 240 | 1030 | 770 | 895 |
43.0 | 95 | 260 | 1136 | 820 | 1169 |
52.0 | 100 | 260 | 1256 | 910 | 1636 |
60.5 | – | 300 | 1430 | 1000 | 2384 |
68.0 | – | 320 | 1690 | 1130 | 4021 |
5) Seven-roller fairlead- Type D, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 944 | 508 | 302 |
22.5 | 40 | 200 | 1048 | 552 | 464 |
26.0 | 45 | 200 | 1106 | 606 | 596 |
32.0 | 70 | 220 | 1250 | 670 | 883 |
34.5 | 80 | 240 | 1340 | 710 | 1048 |
37.5 | 85 | 240 | 1450 | 770 | 1229 |
43.0 | 95 | 260 | 1596 | 820 | 1911 |
52.0 | 100 | 260 | 1746 | 910 | 2675 |
60.5 | – | 300 | 1990 | 1000 | 3887 |
68.0 | – | 320 | 2330 | 1130 | 6432 |
6) Nine-roller fairlead- Type E, CB*3062-79
Steel wire dia. | Nylon wire dia. | E | L | H | Weight |
19.5 | 36 | 200 | 944 | 508 | 302 |
22.5 | 40 | 200 | 1048 | 552 | 464 |
26.0 | 45 | 200 | 1106 | 606 | 596 |
32.0 | 70 | 220 | 1250 | 670 | 883 |
34.5 | 80 | 240 | 1340 | 710 | 1048 |
37.5 | 85 | 240 | 1450 | 770 | 1229 |
43.0 | 95 | 260 | 1596 | 820 | 1911 |
52.0 | 100 | 260 | 1746 | 910 | 2675 |
60.5 | – | 300 | 1990 | 1000 | 3887 |
68.0 | – | 320 | 2330 | 1130 | 6432 |
7) Japanese standard four-roller fairlead Type A, JIS F 2026-80
Nominal dia. |
Applicable wire rope dia. | B | H | L | Opening dia. (length x width) |
Weight |
140 | 18 | 310 | 480 | 515 | 148 x 195 | 214 |
160 | 22.4 | 360 | 515 | 570 | 150 x 200 | 307 |
180 | 25 | 410 | 560 | 620 | 150 x 199 | 410 |
200 | 28 | 460 | 590 | 675 | 152 x 204 | 568 |
250 | 35.5 | 565 | 715 | 825 | 199 x 253 | 1000 |
315 | 42.5 | 670 | 870 | 980 | 253 x 302 | 1620 |
8) Japanese standard five-roller fairlead Type BR, JIS F 2026-80
Nominal dia. |
B | H | L | Leg of weld f |
Weight |
140 | 310 | 480 | 515 | 9 | 235 |
160 | 360 | 515 | 570 | 9 | 353 |
180 | 410 | 560 | 620 | 9 | 496 |
200 | 460 | 590 | 675 | 10 | 648 |
250 | 565 | 715 | 825 | 10 | 1176 |
315 | 670 | 870 | 980 | 12 | 2050 |
9) German standard four-roller fairlead
Type | Wire rope dia. |
A | B | C | F | Weight |
CF 2 | 12 | 180 | 100 | 650 | 170 | 75 |
CF 3 | 16 | 230 | 130 | 800 | 210 | 130 |
CF 5 | 20 | 250 | 130 | 900 | 250 | 220 |
CF 8 | 24 | 280 | 160 | 1000 | 290 | 330 |
CF 12 | 32 | 300 | 160 | 1200 | 366 | 580 |
CF 20 | 40 | 320 | 180 | 1350 | 500 | 1100 |
CF 32 | 48 | 400 | 250 | 1700 | 610 | 2210 |
10) German standard five or six-roller fairlead
Type | Wire rope dia. |
A | B | C | F | Weight |
CFL 2 CFR 2 CFA 2 |
12 | 180 | 100 | 650 | 170 | 85/95 |
CFL 3 CFR 3 CFA 3 |
16 | 230 | 130 | 800 | 210 | 145/165 |
CFL 5 CFR 5 CFA 5 |
20 | 250 | 130 | 900 | 250 | 255/290 |
CFL 8 CFR 8 CFA 8 |
24 | 280 | 160 | 1000 | 288 | 390/440 |
CFL 12 CFR 12 CFA 12 |
32 | 300 | 160 | 1200 | 366 | 665/750 |
CFL 20 CFR 20 CFA 20 |
40 | 320 | 180 | 1350 | 500 | 1300/1450 |
CFL 32 CFR 32 CFA 32 |
48 | 400 | 250 | 1700 | 608 | 2400/2700 |
11) German standard seven-roller fairlead
Type | Wire rope dia. |
A | B | C | F | Weight |
CDF 2 | 12 | 180 | 100 | 914 | 170 | 135 |
CDF 3 | 16 | 230 | 130 | 914 | 210 | 200 |
CDF 5 | 20 | 250 | 130 | 1132 | 250 | 340 |
CDF 8 | 24 | 280 | 160 | 1420 | 288 | 457 |
CDF 12 | 32 | 300 | 160 | 1678 | 366 | 940 |
CDF 20 | 40 | 320 | 180 | 1916 | 500 | 1650 |
CDF 32 | 48 | 400 | 250 | 2400 | 608 | 3600 |
12) St. Lawrence fairlead
Nominal dia. of roller |
Wire dia. 6 x 37-155 |
Synthetic fibre rope | D | L | Weight |
140 | 18.5 | 40 | 140 | 826 | 480 |
160 | 22.5 | 50 | 168 | 920 | 750 |
190 | 28.0 | 65 | 194 | 1002 | 1000 |
200 | 33.5 | 80 | 219 | 1077 | 1400 |
13) Engineering ship’s fairlead Type A, CB* 3015-83
Roller dia. | Horizontal roller dia. | Suitable steel wire dia. | L | B | H | Screw hole dia. |
100 | 85 | 19.5 | 540 | 340 | 240 | 22 |
150 | 120 | 26.0 | 760 | 460 | 340 | 26 |
200 | 150 | 37.5 | 980 | 580 | 430 | 32 |
250 | 200 | 48.5 | 1220 | 740 | 520 | 39 |
300 | 250 | 56.0 | 1460 | 900 | 620 | 39 |
14) Engineering ship’s fairlead Type B, CB* 3015-83
Roller dia. |
Horizontal roller dia. | Suitable steel wire dia. | L | B | H | Screw hole dia. |
100 | 85 | 19.5 | 540 | 340 | 240 | 22 |
150 | 120 | 26.0 | 760 | 460 | 340 | 26 |
200 | 150 | 37.5 | 980 | 580 | 440 | 32 |
250 | 200 | 48.5 | 1220 | 740 | 550 | 39 |
300 | 250 | 56.0 | 1460 | 900 | 675 | 39 |
