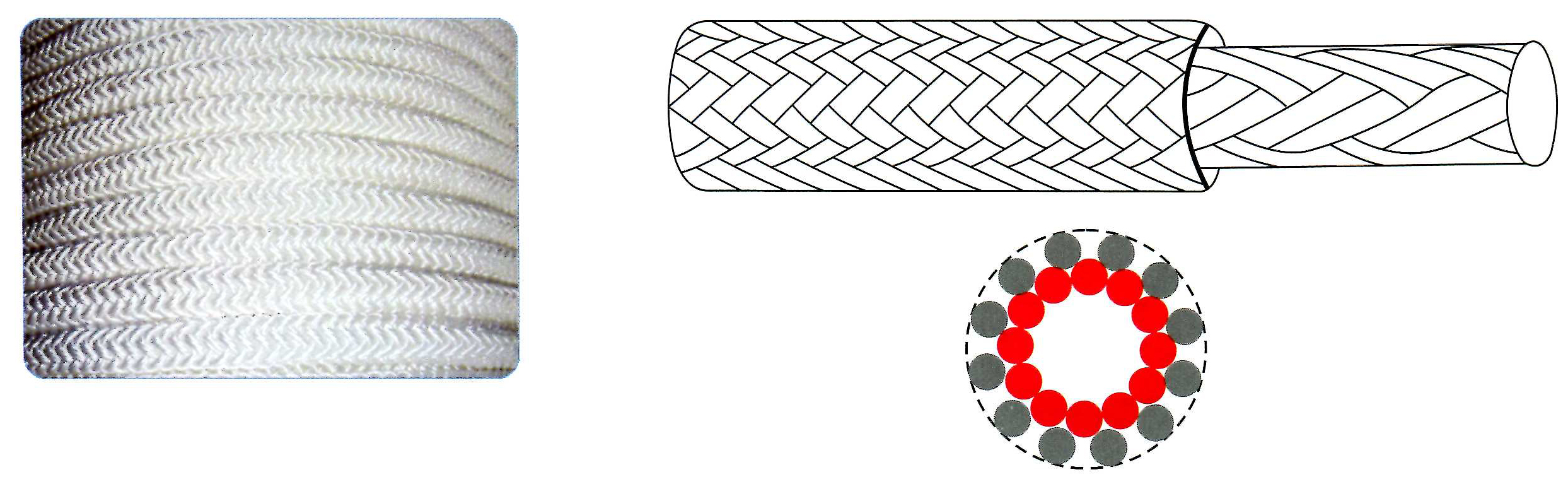

High Tenacity Polypropylene & Polyester Fiber
General:
- This product retains superior breaking strength originated from technically reinforced composition of high tensity polypropylene and polyester. This ideal composition and construction create extremely low elongation.
- It offers stability and safety when the rope is overloaded and makes the rope sustain its properties even after a long period using in sea water.
Main performance
- Material: High tensity PP and Polyester fiber
- Conforming to: OCIMF Guidelines
- Construction: 8, 12, 24, 32, 48- strand plaited
- Application: Marine, fishing, offshore
- Colour of rope: White with red marker yarns
- Specific Gravity: Density 0.98 floating
- Melting Point: 165 ℃ / 260 ℃
- Abrasion Resistance: Very good
- U.V Resistance: Good
- Temperature Resistance: 70 ℃ max continuous
- Chemical Resistance: Good, solvents and strong oxidizer may have a mild effect
- Dry & wet conditions: Wet strength equals dry strength
- Range of use: Fishing, inland shipping, merchant, navy, industry, mooring
- Coil length: 220 m
- Spliced strength: 10% lower
- Weight and length tolerance: ± 5%
- MBL= Minimum Breaking Load confirm ISO 2307
- Other sizes available upon request
Parameter table
Specification Dia |
Specification Cir. |
Weight KGS/100M |
Weight LBS/100FT |
Breaking strength Ton |
Breaking strength KN |
24 | 3 | 33 | 22 | 13475 | 132 |
28 | 3-1/2 | 45 | 30 | 17895 | 176 |
32 | 4 | 58 | 39 | 22961 | 226 |
36 | 4-1/2 | 73 | 49 | 28567 | 281 |
40 | 5 | 90 | 60 | 34496 | 339 |
44 | 5-1/2 | 107 | 72 | 40964 | 402 |
45 | 5-5/8 | 112 | 75 | 43120 | 424 |
48 | 6 | 129 | 87 | 47432 | 465 |
52 | 6-1/2 | 147 | 99 | 54978 | 539 |
56 | 7 | 175 | 118 | 63602 | 624 |
60 | 7-1/2 | 196 | 132 | 72226 | 708 |
64 | 8 | 221 | 149 | 80850 | 793 |
68 | 8-1/2 | 249 | 167 | 90552 | 889 |
72 | 9 | 278 | 187 | 101332 | 994 |
80 | 10 | 342 | 230 | 122892 | 1206 |
88 | 11 | 412 | 277 | 148764 | 1460 |
96 | 12 | 490 | 329 | 175714 | 1724 |
112 | 14 | 661 | 444 | 238238 | 2338 |
120 | 15 | 759 | 510 | 272734 | 2675 |
*Other sizes available upon request.
