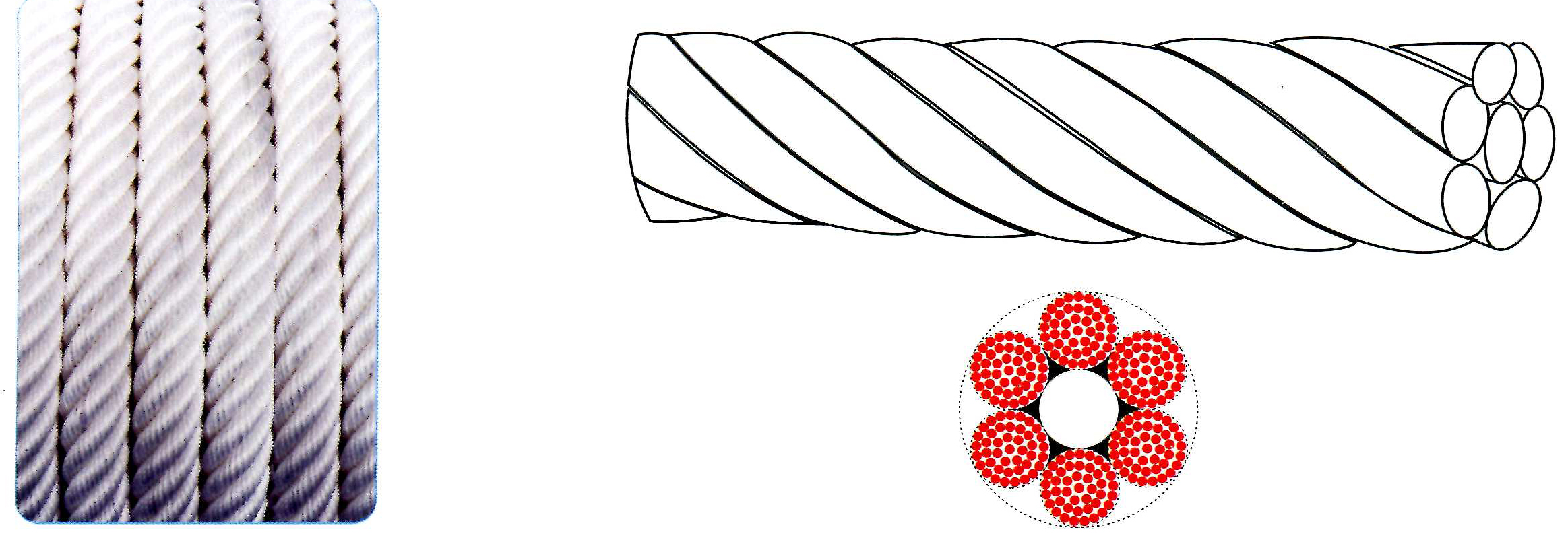

Nylon Synthetic Fiber Rope (ATLAS)
General:
- In abroad, the product is also called ATLAS rope.It is combined by nylon Mono- and Multi-filaments. The mono-filament gives the ropes excellent dimensional stability and abrasion resistance. The splicing technique of Atlas is very similar to wire ropes.
- The strength of the nylon in combination and the dimensional stability makes these lines ideal for mooring, especially for a constant-tension winch.
Main performance
- Material: 100% nylon 6 (mono-and multi-filament)
- Construction: 6 strand crosslay
- Color of rope: White with a red marker yarn
- Approx. spec. density: 1.14 non floating
- Melting Point: 215 ℃
- Abrasion Resistance: Excellent
- U.V Resistance: Excellent
- Temperature Resistance: 80 ℃ Max continuous
- Chemical Resistance: Reasonable, acids, oxidizer & solvents will affect the material
- Dry & Wet Conditions: Can be stowed wet
- Range of use: As winch lines, mooring lines, anchor lines and heavy duty applications
- Coil Length: 220 m
- Spliced strength: 10% lower
- Weight and length tolerance: ± 5%
- MBL= Minimum Breaking Load confirm ISO 2307
- Other sizes available upon request
Parameter table
Specification Dia |
Specification Cir. |
Weight KGS/100M |
Weight LBS/100FT |
Breaking strength Ton |
Breaking strength KN |
36 | 4-1/2 | 83.2 | 56 | 26.0 | 255 |
40 | 5 | 100 | 67 | 31.0 | 304 |
44 | 5-1/2 | 125 | 84 | 42.0 | 412 |
48 | 6 | 148 | 99 | 50.0 | 491 |
52 | 6-1/2 | 160 | 108 | 54.0 | 530 |
56 | 7 | 200 | 134 | 66.5 | 652 |
60 | 7-1/2 | 217 | 146 | 70.0 | 687 |
62 | 7-3/4 | 235 | 158 | 79.0 | 775 |
64 | 8 | 245 | 165 | 81.0 | 795 |
68 | 8-1/2 | 280 | 188 | 94.0 | 922 |
70 | 8-3/4 | 310 | 208 | 103 | 1010 |
72 | 9 | 335 | 225 | 108 | 1059 |
78 | 9-3/4 | 364 | 245 | 120 | 1177 |
80 | 10 | 384 | 258 | 127 | 1242 |
84 | 10-1/2 | 425 | 286 | 140 | 1373 |
88 | 11 | 472 | 317 | 156 | 1533 |
90 | 11-1/4 | 505 | 339 | 165 | 1619 |
96 | 12 | 585 | 393 | 190 | 1864 |
*Other sizes available upon request
