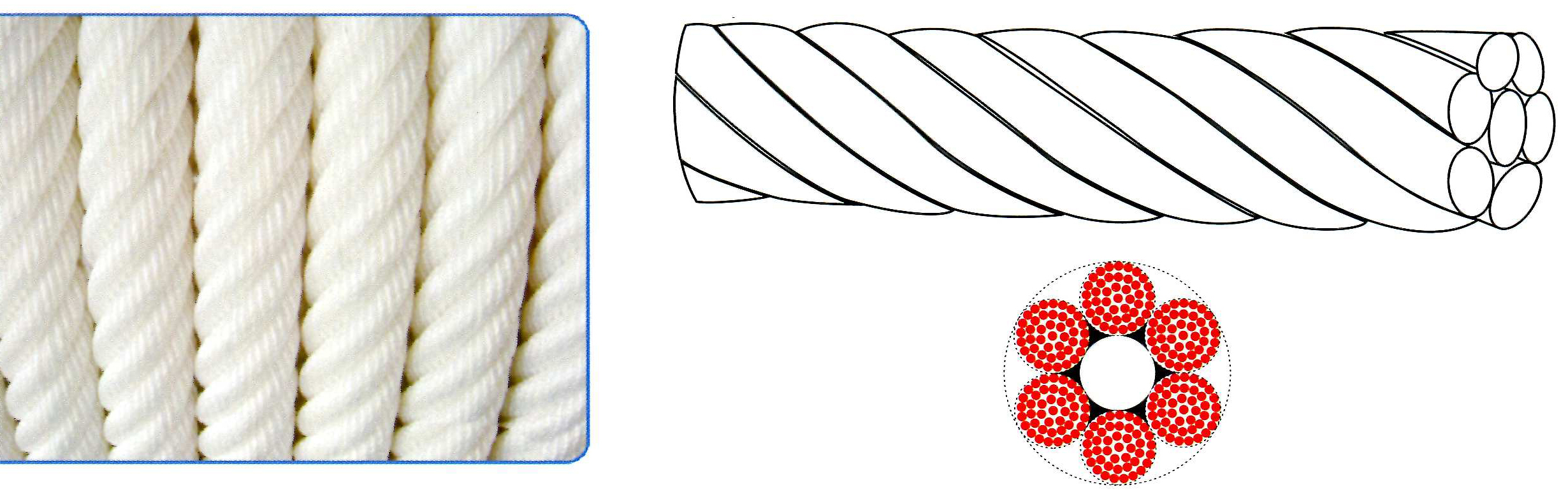

Nylon Single Filament 6-Ply Composite Rope
General:
- It has serial products including polyamide multifilament/nylon single yarn, polypropylene filament/nylon single yarn, polyester/nylon single yarn etc. As a new high-tech product researched and developed by the company, it has won the patent certificate from the state intellectual property bureau(No. of certificate 200320120796.1).
- Processed by special technology, it has superior wearing resistance, which is double than that of normal chemical-fiber ropes and cables therefore it has been widely used in mooring and towing of ships and vessels.
- The products are mainly used in fields of ocean transportation, heavy industry, shipbuilding, petroleum survey and harbor operation etc.
Technology comparison
- Coil length: 220 m
- Spliced strength: ± 10% lower
- Weight and length tolerance: ± 5%
- MBL = Minimum Breaking Load conform ISO 2307
- Other sizes available upon request
Main performance
Material | Polyamide Multifilament/ Nylon Monofilament |
Polypropylene Multifilament /Nylon Monofilament | Polyester Multifilament/ Nylon Monofilament |
Spec. Density | 1.14 not floating | 0.98 floating | 1.22 not floating |
Melting Point | 215 ℃ | 165 ℃ | 260 ℃ |
Abrasion Resistance | Very Good | Good | Very Good |
U.V. resistance | Very Good | Medium | Good |
Temperature resistance | 120 ℃ Max | 70 ℃ Max | 120 ℃ Max |
Chemical resistance | Very Good | Good | Good |
Parameter table
Specification Dia |
Specification Cir. |
Polyamide Multifilament/ Nylon monofilament KN |
Polypropylene Multifilament/ Nylon monofilament KN |
Polyester Multifilament/ Nylon monofilament |
28 | 3-1/2 | 156 | 131 | 138 |
32 | 4 | 197 | 167 | 177 |
36 | 4-1/4 | 246 | 209 | 219 |
40 | 5 | 296 | 252 | 270 |
44 | 5-1/2 | 354 | 303 | 321 |
48 | 6 | 415 | 353 | 378 |
52 | 6-1/2 | 482 | 408 | 442 |
56 | 7 | 553 | 467 | 505 |
60 | 7-1/2 | 631 | 534 | 562 |
64 | 8 | 712 | 603 | 653 |
72 | 9 | 889 | 758 | 813 |
80 | 10 | 1087 | 932 | 997 |
88 | 11 | 1296 | 1118 | 1196 |
96 | 12 | 1632 | 1320 | 1415 |
