Aramid Fiber Rope

General

It has serial rope and cable products of Aramid fiber in 3-ply, 8-ply, 12-ply, 16-ply and double braided. The Aramid is a kind of man made fiber with high performance.

It is polymerized, spun and drawn by special technology thus to make its solid chain rings and chains to  be compounded in a whole therefore it has very stable high strength and heat resisting feature.

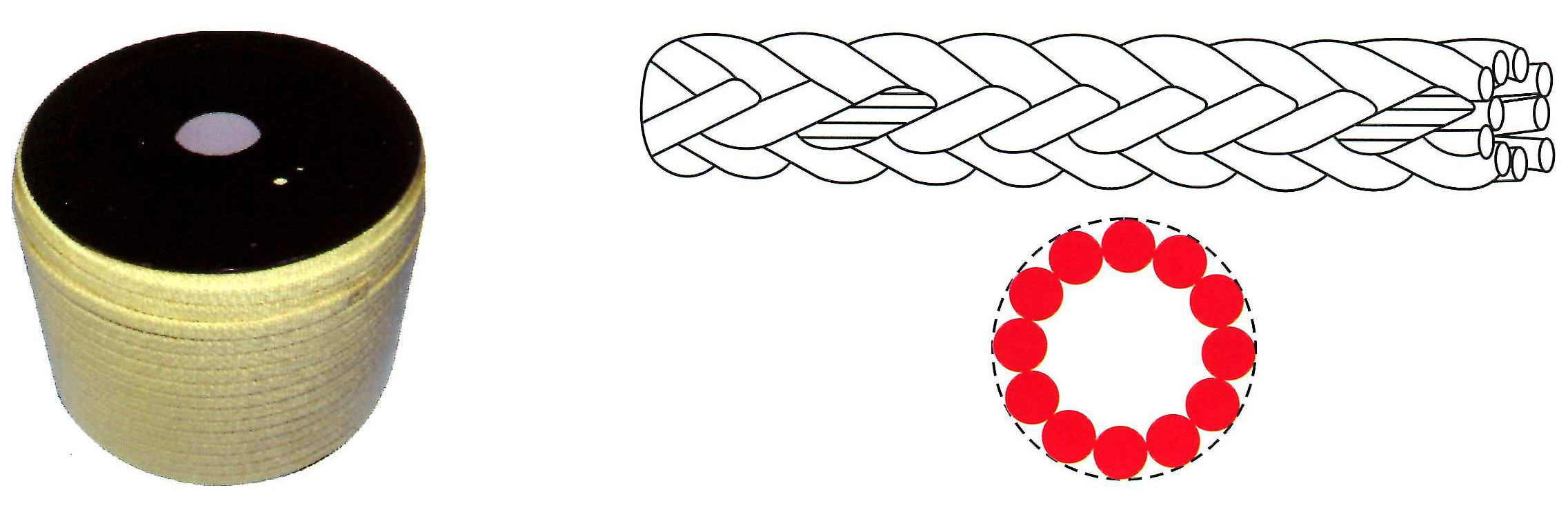

Aramid fiber rope


Main performance

  • Material: High performance Aramid fiber yarns
  • Construction: 3, 8, 12, 16 – strand, double braided
  • Applications: Mooring line, Tug line, Super sized commercial vessel, Wire rope replacement
  • High tensile strength
  • Specific gravity: 1.44
  • Elongation: 5% at break
  • Melting Point:   450 ℃
  • Abrasion Resistance:  Very good
  • U.V Resistance: Good
  • Superior abrasion resistance
  • No difference in tensile strength when wet or dry
  • In -40℃ ~ 350℃ scopes normal operation
  • Other sizes availabe upon request

Parameter table
3-Strand Aramid fiber braided rope
MM		 3- Strand Aramid fiber braided rope
KTEX 		3- Strand Aramid fiber braided rope
KN 		8-Strand Aramid fiber braided rope
MM		 8- Strand Aramid fiber braided rope
KTEX 		8- Strand Aramid fiber braided rope
KN 		Double braided Aramid fiber rope
MM 		Double braided Aramid fiber rope
KTEX 		Double braided Aramid fiber rope
KN
6 30 19 32 842 517 24 462 308
8 52 34 36 1051 649 28 632 429
10 81 55 40 1304 803 32 831 539
12 120 75 44 1577 979 36 1051 678
16 212 130 48 1882 1144 40 1304 825
18 265 172 56 2563 1562 44 1577 990
20 328 205 64 3351 2046 48 1882 1177
24 479 306 72 4243 2640 56 2563 1650
28 653 409 80 5233 3190 64 3351 2090
32 875 524 88 6336 3795 72 4243 2750
36 1071 656 96 7548 4422 80 5233 3245
40 1295 825 110 9353 5555 88 6336 3960

*Other sizes available upon request
