Guide Roller (with Stand)
1)Guide roller CB*58-83 JIS F 2014-87
Dia. of roller D |
Appro. cable dia. 6×24 |
Appro. cable dia. 6×30 |
Appro. cable dia. 6×37 |
Hemp rope | Synthetic fiber rope | Weight Cast iron |
Weight Cast steel |
100 | 11 | 11 | 11 | 40 | 28 | 9.4 | 9.9 |
150 | 17 | 17.5 | 15 | 45 | 32 | 32.1 | 33.8 |
200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 64.6 | 68.0 |
250 | 24 | 26 | 24 | 65 | 45 | 108 | 114.0 |
300 | 30 | 32.5 | 28 | 70 | 50 | 159 | 168.0 |
350 | 37.5 | 39 | 34.5 | 75 | 55 | 235 | 248.0 |
400 | 41 | 39 | 39 | 85 | 65 | 336 | 355.0 |
450 | 44.5 | 47.5 | 43 | – | 80 | 413 | 462.0 |
2)Open type two-roller fairlead CB*58-83 JIS F 2014-87
Size | D | L | l | l1 |
150 | 150 | 740 | 420 | 160 |
200 | 200 | 930 | 530 | 200 |
250 | 250 | 1100 | 640 | 230 |
300 | 300 | 1270 | 750 | 260 |
350 | 350 | 1440 | 860 | 290 |
400 | 400 | 1610 | 970 | 320 |
450 | 450 | 1800 | 1080 | 360 |
3)Open type three-roller fairlead CB*58-83 JIS F 2014-87
Size | D | L | l | l1 |
150 | 150 | 1160 | 420 | 160 |
200 | 200 | 1460 | 530 | 200 |
250 | 250 | 1740 | 640 | 230 |
300 | 300 | 2020 | 750 | 260 |
350 | 350 | 2300 | 860 | 290 |
400 | 400 | 2580 | 970 | 320 |
450 | 450 | 2880 | 1080 | 360 |
4) Guide roller with stand(closed type) JIS F 2014-87

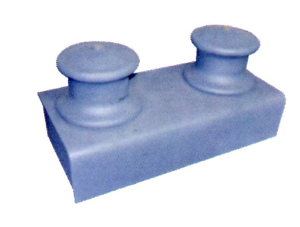

Closed type two-roller fairlead
Size | D | L | l | l2 |
150 | 150 | 1020 | 420 | 300 |
200 | 200 | 1190 | 530 | 330 |
250 | 250 | 1430 | 640 | 395 |
300 | 300 | 1610 | 750 | 430 |
350 | 350 | 1890 | 860 | 515 |
400 | 400 | 2100 | 970 | 565 |
450 | 450 | 2360 | 1080 | 640 |
5) Closed type three-roller fairlead
Size | D | L | l | l2 |
150 | 150 | 1440 | 420 | 300 |
200 | 200 | 1720 | 530 | 330 |
250 | 250 | 2070 | 640 | 395 |
300 | 300 | 2360 | 750 | 430 |
350 | 350 | 2750 | 860 | 515 |
400 | 400 | 3070 | 970 | 565 |
450 | 450 | 3440 | 1080 | 640 |
6) Ship’s guide roller GB/T10105-88 NS 2585
Dia. of roller D |
Appro. cable dia. 6×24 |
Appro. cable dia. 6×37 |
Hemp rope | Synthetic fiber rope | Weight |
150 | 17.0 | 15.0 | 45 | 32 | 24.8 |
200 | 22.5 | 19.5 | 55 | 40 | 49.3 |
250 | 24.0 | 24.0 | 65 | 45 | 92.0 |
300 | 30.0 | 28.0 | 70 | 50 | 127.0 |
350 | 37.5 | 34.5 | 75 | 55 | 168.0 |
400 | 41.0 | 39.0 | 85 | 65 | 252.5 |
450 | 44.5 | 43.0 | – | 80 | 310.0 |
7) Ship’s guide roller(with stand)
Open type two-roller fairlead
Size | D | L | l | l2 |
150 | 150 | 740 | 420 | 160 |
200 | 200 | 930 | 530 | 200 |
250 | 250 | 1100 | 640 | 230 |
300 | 300 | 1270 | 750 | 260 |
350 | 350 | 1440 | 860 | 290 |
400 | 400 | 1610 | 970 | 320 |
450 | 450 | 1800 | 1080 | 360 |
8)Open type three-roller fairlead
Size | D | L | l | l2 |
150 | 150 | 1160 | 420 | 160 |
200 | 200 | 1460 | 530 | 200 |
250 | 250 | 1740 | 640 | 230 |
300 | 300 | 2020 | 750 | 260 |
350 | 350 | 2300 | 860 | 290 |
400 | 400 | 2580 | 970 | 320 |
450 | 450 | 2880 | 1080 | 360 |
9)Warping roller DIN 81906
Type | Rated towing pull (Kn) | Breaking load of rope(Kn) | Weight | D1 | D3 | D4 | H1 |
1 | 10 | 90 | 14 | 160 | 210 | 195 | 80 |
2 | 20 | 150 | 20 | 200 | 265 | 245 | 102 |
3 | 30 | 220 | 33 | 250 | 330 | 300 | 126 |
5 | 50 | 350 | 72 | 320 | 420 | 390 | 160 |
8 | 80 | 500 | 140 | 400 | 530 | 490 | 208 |
12 | 120 | 800 | 240 | 450 | 610 | 560 | 256 |
20 | 200 | 1150 | 320 | 500 | 640 | 620 | 278 |
32 | 320 | 1750 | 580 | 560 | 780 | 740 | 348 |
10)Rollers (Korean type)
Nominal dia. | Ø | Ø1 | Ø2 | H | C |
150 | 150 | 216 | 240 | 137 | 5 |
200 | 200 | 280 | 310 | 157 | 5 |
250 | 250 | 350 | 380 | 177 | 6 |
300 | 300 | 400 | 440 | 197 | 7 |
350 | 350 | 460 | 500 | 217 | 7 |
400 | 400 | 520 | 560 | 237 | 7 |
450 | 450 | 590 | 630 | 257 | 7 |
500 | 500 | 660 | 700 | 277 | 7 |
11)Rollers (Steel plate) JISF 2014 CB/T3861-2011
Nominal size | Rib q’ty | Set screw size |
Set screw length |
Set screw q’ty |
Weight |
200 | 6 | M8 | 10 | 4 | 34.0 |
250 | 6 | M8 | 10 | 4 | 58.4 |
300 | 6 | M8 | 10 | 4 | 84.3 |
350 | 6 | M8 | 10 | 4 | 121.0 |
400 | 6 | M8 | 10 | 4 | 162.0 |
450 | 6 | M8 | 10 | 4 | 204.0 |
