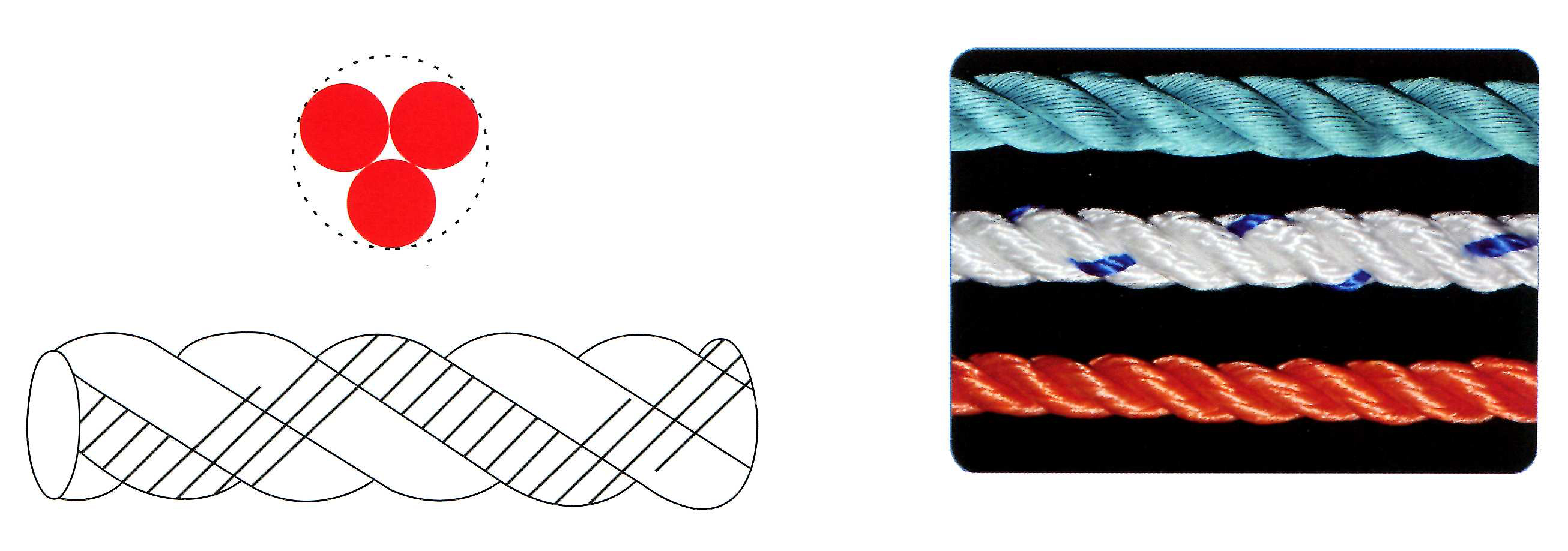

3 Strand Rope
General:
- It has serial products including varieties of nylon, polypropylene filament, polypropylene/polyester mixed, polyester. All products have wide range of application as well as advantages of high strength, low elongation, wearing resistance and anti-corrosion.
- They are soft, smooth and easy for operation. Meanwhile, products can be used to make special anti-static rope. They are mainly used in various fields of ships and vessels, fishing, loading and unloading in harbor, power supply construction, petroleum survey, physical exercise wares, national defense scientific and research etc.
Technology comparison
- Coil length: 220 m
- Spliced strength: ± 10% lower
- Weight and length tolerance: ± 5%
- MBL = Minimum Breaking Load conform ISO 2307
- Other sizes available upon request
Main performance
Material | Polyamide Multifilament | Polyamide Yarn | Polypropylene Multifilament | Polypropylene | Polyester | Polypropylene & Polyester Mixed |
Spec. Density | 1.14 not floating | 1.14 not floating | 0.91 floating | 0.91 floating | 1.27 not floating | 0.95 floating |
Melting Point | 215 ℃ | 215 ℃ | 165 ℃ | 165 ℃ | 260 ℃ | 165 ℃/260 ℃ |
Abrasion Resistance | Very Good | Very Good | Medium | Medium | Good | Good |
U.V. resistance | Very Good | Very Good | Medium | Medium | Good | Good |
Temperature resistance | 120 ℃ Max | 120 ℃ Max | 70 ℃ Max | 70 ℃ Max | 120 ℃ Max | 80 ℃ Max |
Chemical resistance | Very Good | Very Good | Good | Good | Good | Good |
Parameter table
Specification Dia |
Specification Cir. |
PA Multifilament KN |
PA Yarn KN |
PP Multifilament KN |
Polypropylene | Polyester | PET/PP Mixed KN |
4 | 1/2 | 3.7 | 2.6 | 2.3 | 2.1 | 2.9 | 2.8 |
6 | 3/4 | 7.9 | 6.0 | 6.5 | 5.9 | 5.6 | 6.8 |
8 | 1 | 13.8 | 10.9 | 11.4 | 10.4 | 10.0 | 11.9 |
10 | 1-1/4 | 21.2 | 15.7 | 16.8 | 15.3 | 15.6 | 18.2 |
12 | 1-1/2 | 30.1 | 24.1 | 23.9 | 21.7 | 22.3 | 25.7 |
14 | 1-3/4 | 40.0 | 33.0 | 32.9 | 29.9 | 31.2 | 34.7 |
16 | 2 | 51.9 | 42.5 | 40.7 | 37.0 | 39.8 | 44.8 |
18 | 2-1/4 | 64.3 | 53.9 | 51.9 | 47.2 | 49.8 | 56.1 |
20 | 2-1/2 | 79.2 | 66.7 | 62.6 | 56.9 | 62.3 | 68.7 |
22 | 2-3/4 | 94.0 | 80.4 | 75.0 | 68.2 | 74.7 | 82.1 |
24 | 3 | 112 | 96.3 | 87.7 | 79.7 | 89.6 | 96.3 |
26 | 3-1/4 | 129 | 111.5 | 101 | 92.2 | 105 | 113 |
28 | 3-1/2 | 149 | 127 | 115 | 105 | 120 | 130 |
30 | 3-3/4 | 169 | 143 | 132 | 120 | 134 | 148 |
32 | 4 | 192 | 161 | 146 | 132 | 1554 | 167 |
36 | 4-1/2 | 240 | 200 | 182 | 166 | 190 | 210 |
40 | 5 | 294 | 241 | 221 | 201 | 235 | 257 |
44 | 5-1/2 | 351 | 289 | 266 | 242 | 275 | 308 |
48 | 6 | 412 | 338 | 308 | 280 | 329 | 364 |
52 | 6-1/2 | 479 | 393 | 357 | 325 | 384 | 424 |
56 | 7 | 550 | 450 | 408 | 371 | 439 | 489 |
* Other sizes available upon request.
