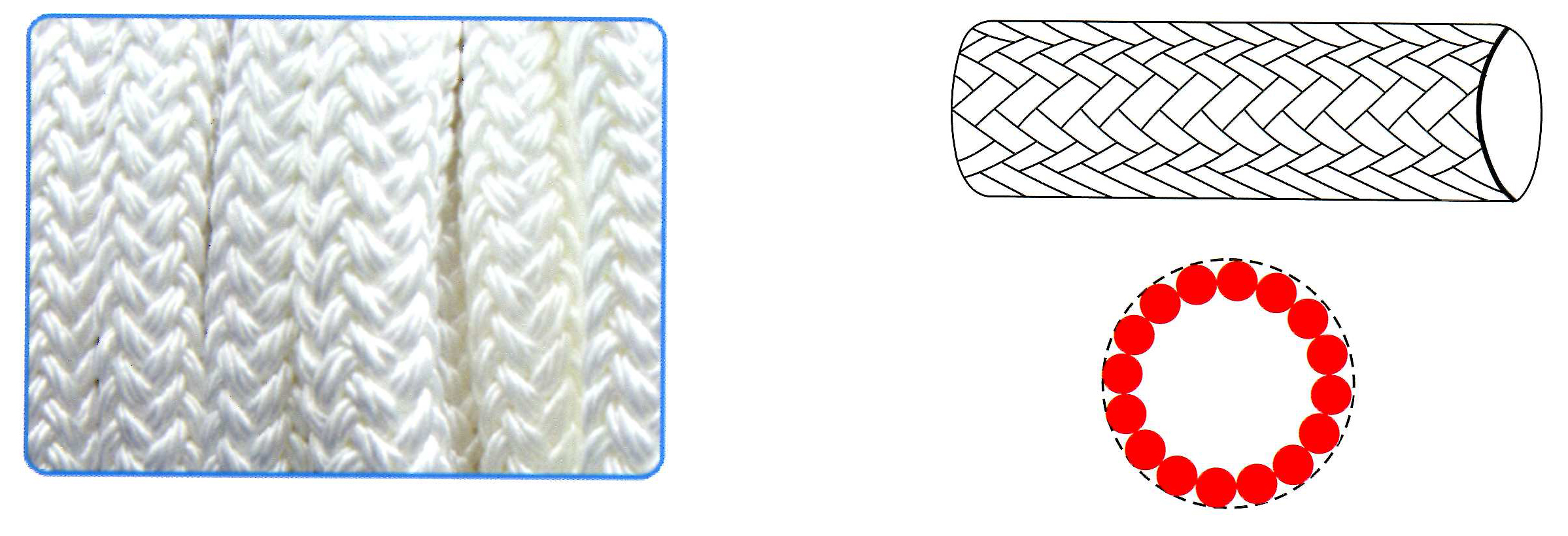

16 Strand Rope
General:
- It has serial products including varieties of nylon, polypropylene filament, polypropylene, polypropylene/polyester mixed, polyester etc.
- Imported SEI1/16-600 16 ply braided to fill up the gap of rope-making industry in our country, its special braided structure and technology craft rise up the utilization rate of strength of fiber thus to make the rope with advantages of low elongation, wearing resistance, smooth and easy operation providing ideal products for special requirement for customers.
- The products are mainly used in fields of shipbuilding, ocean transportation, petroleum drilling, national defense and military industry as well as loading and unloading in harbors.
Technology comparison
- Coil length: 220 m
- Spliced strength: ± 10% lower
- Weight and length tolerance: ± 5%
- MBL = Minimum Breaking Load conform ISO 2307
- Other sizes available upon request
- Main performance
Material | Polyamide Multifilament | Polyamide Yarn | Polypropylene Multifilament | Polyester |
Spec. Density | 1.14 not floating | 1.14 not floating | 0.91 floating | 1.27 not floating |
Melting Point | 215 ℃ | 215 ℃ | 165 ℃ | 260 ℃ |
Abrasion Resistance | Very Good | Very Good | Medium | Good |
U.V. resistance | Very Good | Very Good | Medium | Good |
Temperature resistance | 120 ℃ Max | 120 ℃ Max | 70 ℃ Max | 120 ℃ Max |
Chemical resistance | Very Good | Very Good | Good | Good |
- Parameter table
Specification Dia |
Specification Cir. |
PA Multifilament KN |
PA Yarn KN |
PP Multifilament KN |
Polyester |
20 | 2-1/2 | 87 | 73 | 69 | 76 |
24 | 3 | 123 | 106 | 96 | 108 |
28 | 3-1/2 | 164 | 140 | 127 | 143 |
32 | 4 | 211 | 177 | 160 | 184 |
36 | 4-1/2 | 264 | 220 | 201 | 231 |
40 | 5 | 323 | 265 | 243 | 283 |
44 | 5-1/2 | 386 | 318 | 292 | 339 |
48 | 6 | 453 | 372 | 339 | 400 |
52 | 6-1/2 | 527 | 432 | 393 | 466 |
56 | 7 | 605 | 495 | 449 | 538 |
60 | 7-1/2 | 690 | 564 | 513 | 614 |
64 | 8 | 780 | 637 | 581 | 694 |
72 | 9 | 976 | 795 | 729 | 868 |
80 | 10 | 1188 | 972 | 897 | 1059 |
* Other sizes available upon request.
