Marine Ceramic Fiber Series
A) Marine Ceramic Fiber Plate
- Marine ceramic fiber plate is a fire resistant partition material to be used on marine vessels in accordance to the International Convention for the Safety of Life at Sea 1974 for Class A partition materials.
- Our ceramic fiber plate have been type-approved by various classification societies and legal inspection organizations.
Length mm |
Width mm |
Thickness mm |
Cladding |
1000 | 800 | 20~100 | Glass cloth/ Aluminum foil |
1000 | 700 | 20~100 | Glass cloth/ Aluminum foil |
1000 | 600 | 20~100 | Glass cloth/ Aluminum foil |
1000 | 500 | 20~100 | Glass cloth/ Aluminum foil |
1000 | 400 | 20~100 | Glass cloth/ Aluminum foil |
1000 | 300 | 20~100 | Glass cloth/ Aluminum foil |
B) Marine Ceramic Fiber Felt & Carpet
Marine ceramic fiber felt is used for bulkhead stiffener or deck beam of ships. The tensity is 90 ~ 130kg/m3 ± 10%.

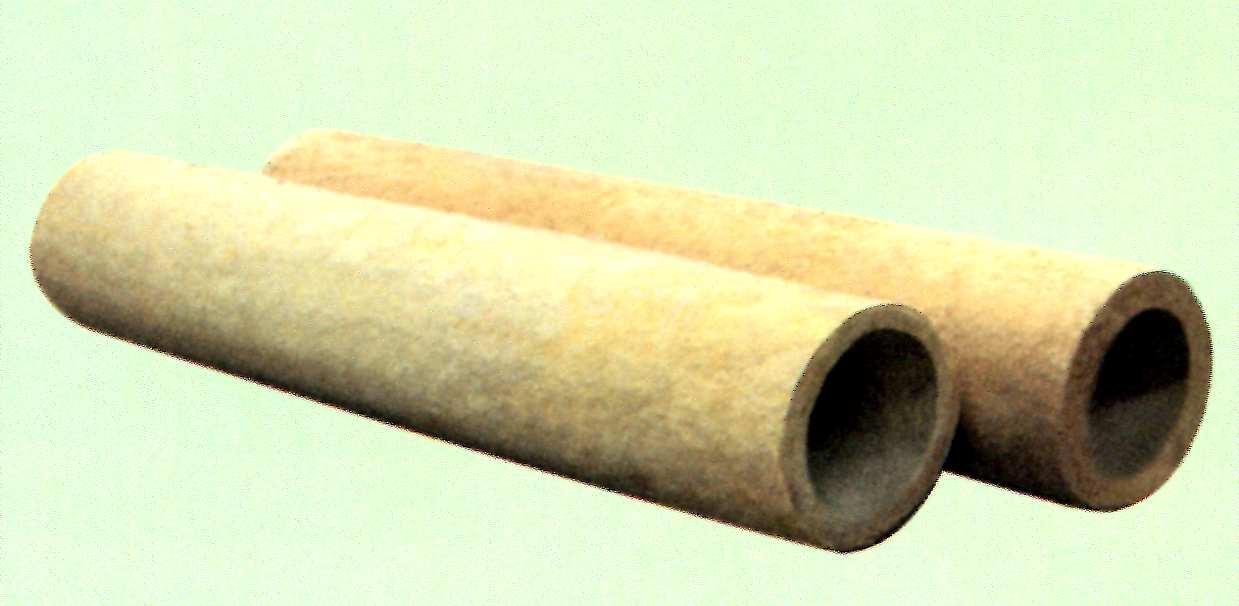

C) Marine Ceramic Fiber Casing Pipes
Used as heat protection and thermal insulation covering materials for pipes valves and equipment. The density is 120 ~ 200kg/m3 ± 10%, which can save energy resources 18~47%.
Outer diameter mm |
Thickness mm |
Length mm |
Outer diameter mm |
Thickness mm |
Length mm |
18 | 25 30 40 50 |
1000 | 133 | 50 ~ 80 | 1000 |
25 | 25 30 40 50 |
1000 | 159 | 50 ~ 80 | 1000 |
32 | 25 30 40 50 |
1000 | 219 | 50 ~ 80 | 1000 |
38 | 25 30 40 50 |
1000 | 273 | 50 ~ 80 | 1000 |
45 | 25 30 40 50 |
1000 | 325 | 50 ~ 80 | 1000 |
57 | 25 30 40 50 |
1000 | 377 | 50 ~ 80 | 500 |
76 | 25 30 40 50 |
1000 | 426 | 50 ~ 80 | 500 |
89 | 25 30 40 50 |
1000 | 473 | 50 ~ 80 | 500 |
108 | 25 30 40 50 |
1000 | above 529 | 50 ~ 80 | 500 |
D) Marine Ceramic Fiber Rope
Marine ceramic fiber ropes use ceramic fire-proof fiber as core material covered with glass fiber cloth used as strips for class A fire-proof door frame. It shares the advantage of light weight, frame-retardant, high tension and high strength, etc.
Item & Unit | Data | Size mm |
Density (kg/m3) | 250 ~ 300 (±20%) | Ø10 ~ Ø45 |
Thermal conductivity (w/m.k) | < 0.08 | Ø10 ~ Ø45 |
Hygroscopicity (%) | ≤ 5 | Ø10 ~ Ø45 |
Tensile strength (MPa) | > 7 | Ø10 ~ Ø45 |
Non-combustibility | Approved | Ø10 ~ Ø45 |
E) Ceramic Fiber Principal Technical Specifications
Name | Chemical | Mean diameter of fiber(u) | Shot content | Density (kg/m3) |
Moisture capacity (%) |
Linear shrinkage under heating (%) | safe service temperature | Non-combustilble | Hydroscopicity % |
Moisture resistivity (%) |
Ceramic fiber products | 96 ~ 200± 10% |
≤ 4 | ≤ 12 (Ø>0.25mm) |
96~200 | ≤ 0.5 | ≤ 4 | ≤ 1050 | Approved | ≤ 5 | ≥ 98 |
