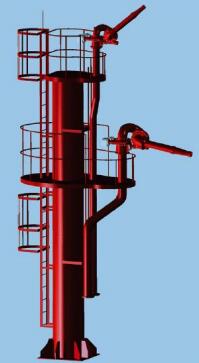

Fire Monitor Tower
Description:
- Fire monitor tower is a kind of auxiliary equipment used for installing fire monitor in high place. It is designed and made according to code for design of high-rise structures GBJ 135-90 and code for design of steel structures GB 50017-2003. The tower can be installed with platform of single layer, double layers or three layers.

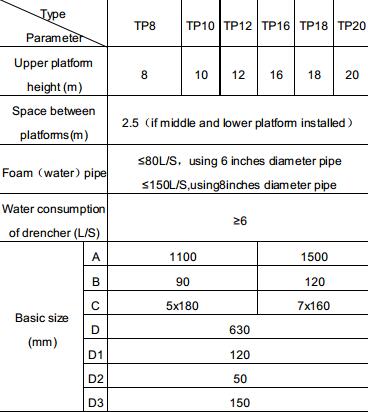

- The parameter list is made according to natural climatic conditions such as regional windload, seismic intensity and so on. It is just for reference. The influence of winter icing on foundation and tower structure shall be taken into consideration in northern cold and freezing area.
Max. height of platform: 25m
When tower has one of the following conditions:
1) It has more than two platforms;
2) Basic pressure (100 years of return period) in
the installation site is above 0.85kN/m2
3) Total recoil of the monitor is more than 7.5KN. The column base with sheering resistance kz should be used to protect the foundation bolt from being destroyed by shearing force.
4) Pressure grouting for the second time is necessary when the
vertical loading of the tower is in its place.
