Electric Monorail Crane
Description:

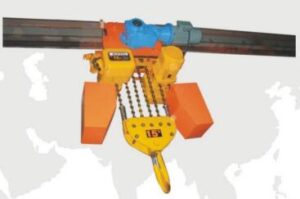

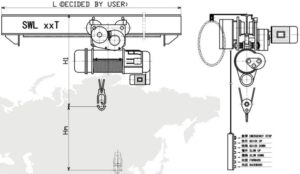

- This Monorail Electric Crane is mainly used for auxiliary lifting or object transfer inside the engine room of the ship. It is mainly composed of a track beam with a rack, a self-locking running car and a hoist, and is provided with a mechanical limit stop block and an electrical limit switch at both ends of the track beam.
- The running motor of this crane adopts a lifting conical rotor motor and can realize the stop locking at any position by engaging the pinion of the output shaft with the rack below the track beam. Hoist can be selected according to user requirements such as Marine electric wire rope hoist or electric chain hoist, lifting speed can be selected according to user requirements for single speed or double speed.
- The crane is compact structured, simple operated, safety guaranteed, easy adjusted and maintenance.
Technical Parameter:
SWL | 0.5T | 1.0T | 2.0T | 3.0T | 5.0T | 10.0T |
Hoisting Height | 6~18m | 6~30m | 6~30m | 6~30m | 6~30m | 6~30m |
Hoisting Speed | 0.8/8m/min | 0.8/8m/min | 0.8/8m/min | 0.8/8m/min | 0.8/8m/min | 0.7/7m/min |
Running Speed | ~6 m/min | ~6 m/min | ~6 m/min | ~6 m/min | ~5 m/min | ~5 m/min |
Hoist Power | 0.8/0.2kw | 1.5/0.4kw | 3.0/0.4kw | 4.5/0.8kw | 7.5/0.8kw | 13/1.5kw |
I Beam Type | I16b | I20b | I22b | I25b | I32b | I56b |
Min. Bending Radius | 1.0m | 1.2m | 1.5m | 2.0m | 2.5m | 3.0m |
- Power Supply: AC380V 50HZ 3PH / AC415V 50HZ 3PH / AC440V 60HZ 3PH
- Longitudinal Length: As per user’s requirements
- Other specifications can designed and customized by user’s requirements
If you have any inquiry, please feel free to contact us and we are committed to provide best quotation and design for your kind perusal.
